LCCA30631-FT2
ActivePasternack
SMA F TO TNC FBH USING LC085TBJ,
LCCA30631-FT2
ActivePasternack
SMA F TO TNC FBH USING LC085TBJ,
Description
General part information
LCCA30631-FT2

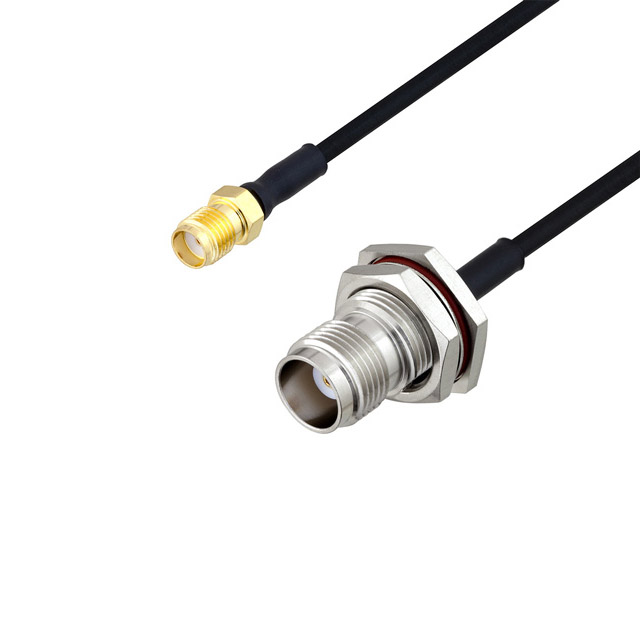

Cable Assembly Coaxial SMA to TNC LC085TBJ 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30631-FT2 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TBJ |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 24 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, TNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
