HV1825Y562KXHATHV
ActiveVishay Dale
CAP CER 5600PF 3KV X7R 1825
HV1825Y562KXHATHV
ActiveVishay Dale
CAP CER 5600PF 3KV X7R 1825
Description
General part information
HV1825Y562KXHATHV

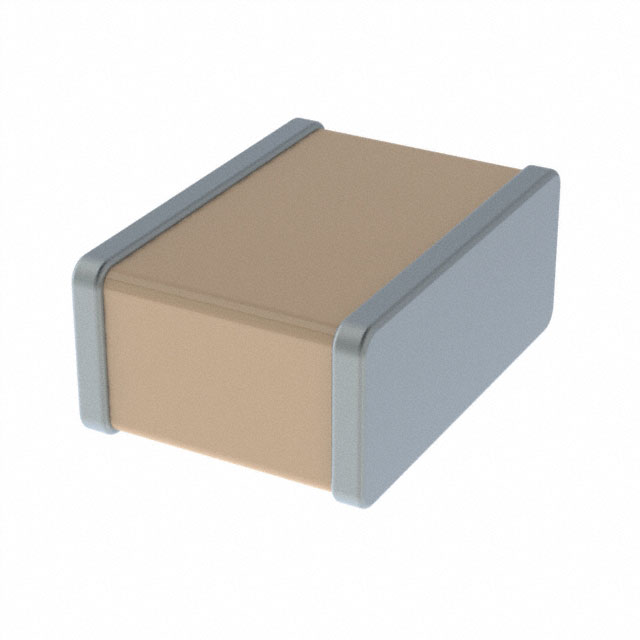

5600 pF ±10% 3000V (3kV) Ceramic Capacitor X7R 1825 (4564 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | HV1825Y562KXHATHV |
|---|---|
| Applications | General Purpose |
| Capacitance | 5600 pF |
| Features | High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1825 (4564 Metric) |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.252 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.106 in |
| Tolerance | 10 % |
| Voltage - Rated | 3000 V |
