1002-1551-003

Active

Radiall USA, Inc.

SMC M STR NA CL 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC M STR NA CL 2.6/50S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

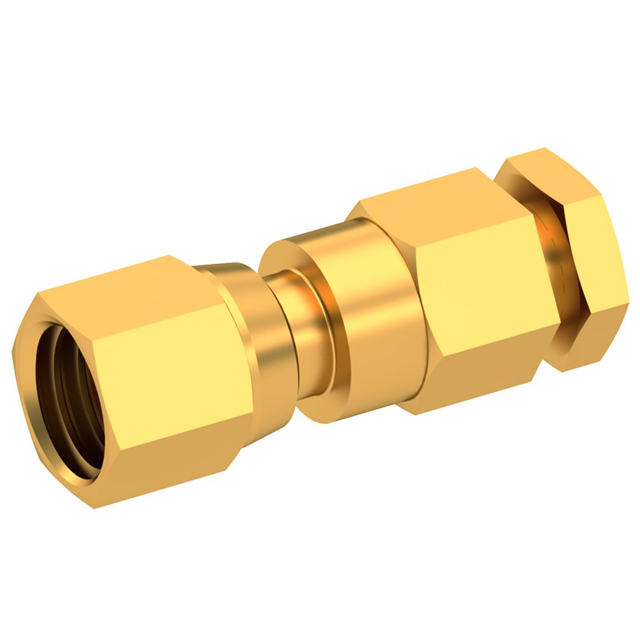

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1002-1551-003	1002-1551 Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Cable Group	179, RG-174, 316	RG-178DS, RG-178, RG-316DS, 179, RG-174, 316
Cable Group	-	196
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMC	SMC
Connector Type	Plug, Female Socket	Plug, Female Socket
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz	10 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.25 dB	0.25 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Clamp
Voltage Rating	335 V	250 - 335 VDC

SMC / STRAIGHT PLUG FEMALE CLAMP

Part	Mounting Type	Number of Ports	Frequency - Max [Max]	Connector Type	Contact Termination	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Cable Group	Body Material	Connector Style	Mating Cycles	Voltage Rating	Center Contact Plating	Body Finish	Dielectric Material	Insertion Loss	Shield Termination	Housing Color	Cable Group
Radiall USA, Inc. 1002-1551-005	Free Hanging (In-Line)	1	10 GHz	Female Socket, Plug	Solder	Beryllium Copper	-65 ░C	165 °C	50 Ohms	RG-178DS	Brass	SMC	500	250 VDC	Gold	Gold	Polytetrafluoroethylene (PTFE)	0.25 dB	Clamp	Gold
Radiall USA, Inc. 1002-1551-002	Free Hanging (In-Line)	1	10 GHz	Female Socket, Plug	Solder	Beryllium Copper	-65 ░C	165 °C	50 Ohms	RG-178	Brass	SMC	500	250 VDC	Gold	Gold	Polytetrafluoroethylene (PTFE)	0.25 dB	Clamp	Gold	196
Radiall USA, Inc. 1002-1551-019	Free Hanging (In-Line)	1	10 GHz	Female Socket, Plug	Solder	Beryllium Copper	-65 ░C	165 °C	50 Ohms	RG-316DS	Brass	SMC	500	250 VDC	Gold	Gold	Polytetrafluoroethylene (PTFE)	0.25 dB	Clamp	Gold
Radiall USA, Inc. 1002-1551-003	Free Hanging (In-Line)	1	10 GHz	Female Socket, Plug	Solder	Beryllium Copper	-65 ░C	165 °C	50 Ohms	179, 316, RG-174	Brass	SMC	500	335 V	Gold	Gold	Polytetrafluoroethylene (PTFE)	0.25 dB	Clamp	Gold
