KPDE030-H8-B
ActiveRenesas Electronics Corporation
SENSOR PHOTODIODE TO206AA
KPDE030-H8-B
ActiveRenesas Electronics Corporation
SENSOR PHOTODIODE TO206AA
Description
General part information
KPDE030-H8-B

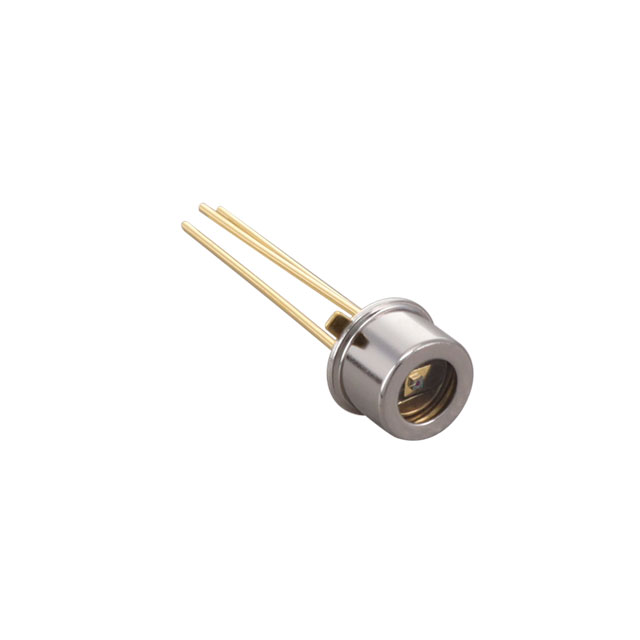

Photodiode TO-206AA, TO-18-3 Metal Can
Technical Specifications
Parameters and characteristics for this part
| Specification | KPDE030-H8-B |
|---|---|
| Active Area Diameter | 0.3 mm |
| Active Area Shape | Dia |
| Current - Dark (Typ) | 100 pA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | TO-18-3 Metal Can, TO-206AA |
| Responsivity | 0.9 A/W, 1 A/W |
| Spectral Range (Maximum) | 1700 nm |
| Spectral Range (Minimum) | 400 nm |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
