HFB170070-100
ActiveLaird Technologies EMI
FERRITE CORE 185 OHM SOLID
HFB170070-100
ActiveLaird Technologies EMI
FERRITE CORE 185 OHM SOLID
Description
General part information
HFB170070-100

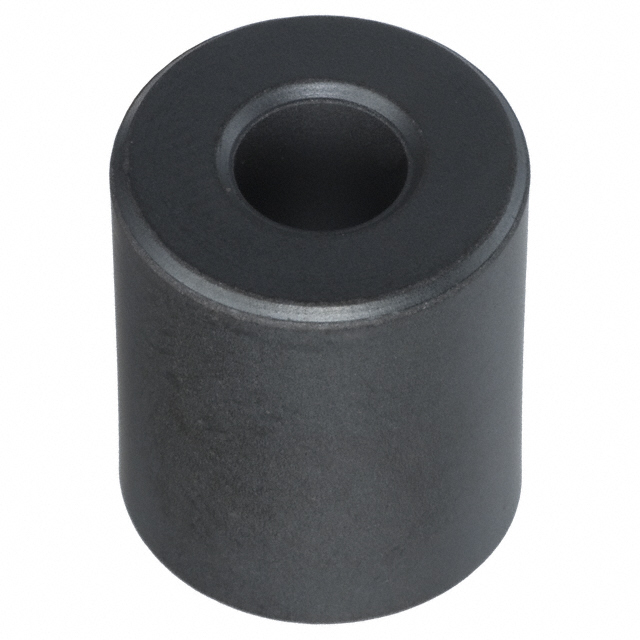

Solid Free Hanging Ferrite Core 185Ohm @ 300MHz ID 0.276" Dia (7.01mm) OD 0.669" Dia (16.99mm) Length 0.394" (10.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | HFB170070-100 |
|---|---|
| Design | Solid |
| Impedance | 185 Ohm |
| Inner Dimension (Diameter) | 0.276 in |
| Length | 0.394 in |
| Material | HF |
| Mounting Type | Free Hanging |
| Outer Dimension (Diameter) | 0.669 in |
| Type | Round |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
