1393433-8
ActiveTE Connectivity AMP Connectors
V23540M5302Y91=2P STIFTGEHAEUS
1393433-8
ActiveTE Connectivity AMP Connectors
V23540M5302Y91=2P STIFTGEHAEUS
Description
General part information
1393433-8

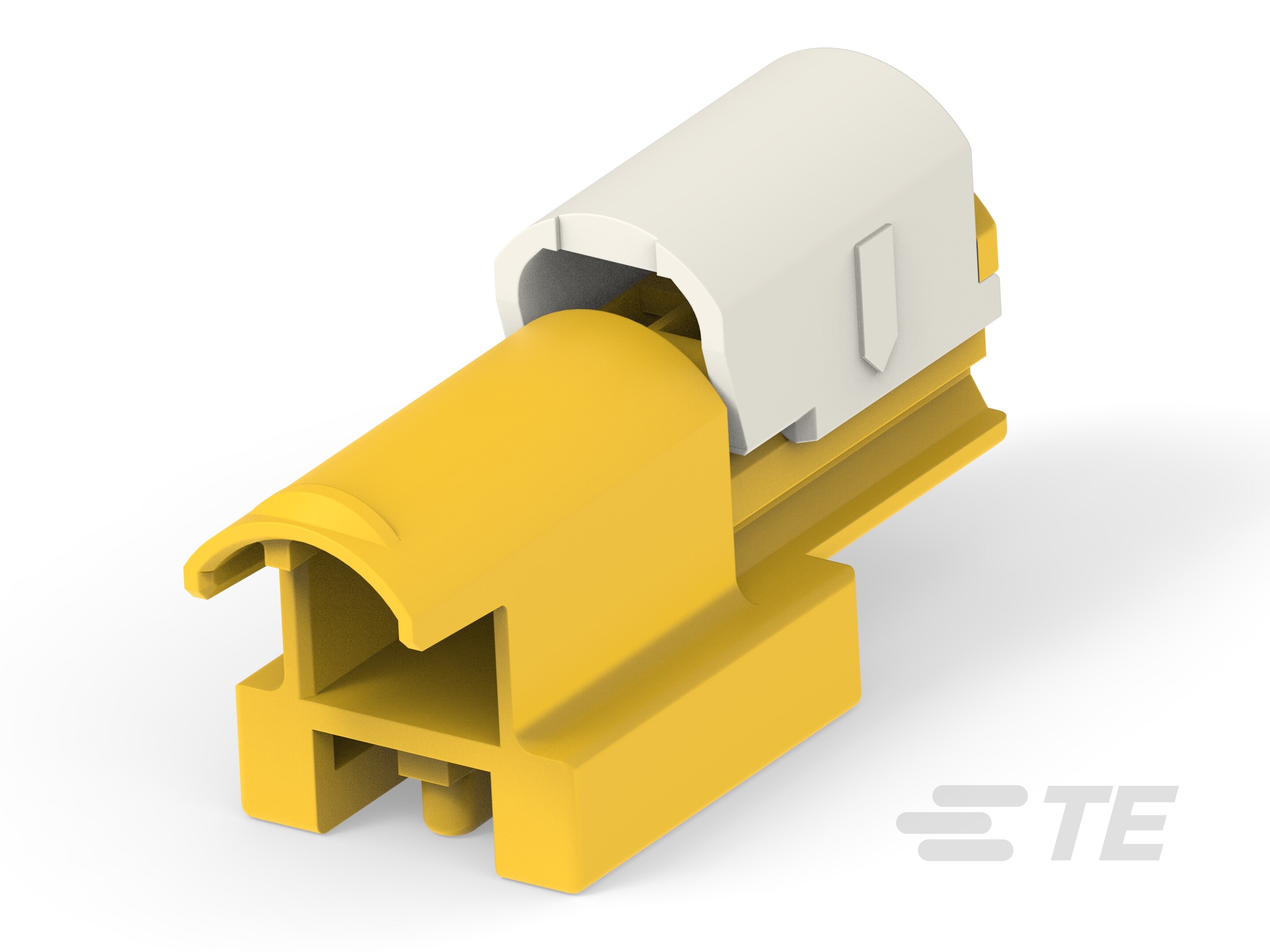

2 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.54 mm [.1 in] Centerline, Yellow, Wire & Cable, Signal, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1393433-8 |
|---|---|
| Color | Yellow |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Push-Pull |
| Features | Shorting Bar |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
