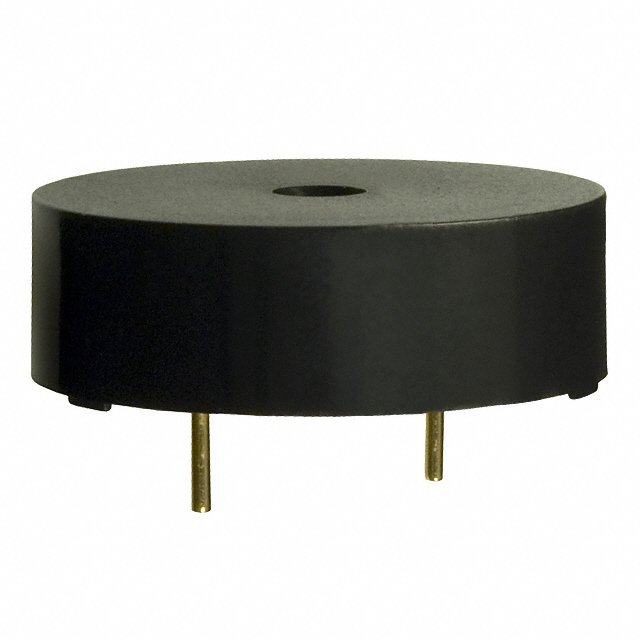

CEP-1116
ActiveSame Sky (Formerly CUI Devices)
AUDIO TRANSDUCER PIEZO 30VP-P 8MA 10VP-P 90DB THROUGH HOLE PIN
CEP-1116
ActiveSame Sky (Formerly CUI Devices)
AUDIO TRANSDUCER PIEZO 30VP-P 8MA 10VP-P 90DB THROUGH HOLE PIN
Description
General part information
CEP-1116
Buzzers Transducer, Externally Driven Piezo 10 V 8mA 90dB @ 10V, 10cm Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | CEP-1116 |
|---|---|
| Current - Supply | 8 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Height - Seated (Max) | 0.413 in |
| Input Type | Peak-Peak Signal |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Port Location | Top |
| Size / Dimension Diameter | 1.181 in |
| Sound Pressure Level (SPL) | 90 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 10 V |
| Voltage Range (Max) | 30 VDC |
