HG65806QPCUPR-NF
ActivePasternack

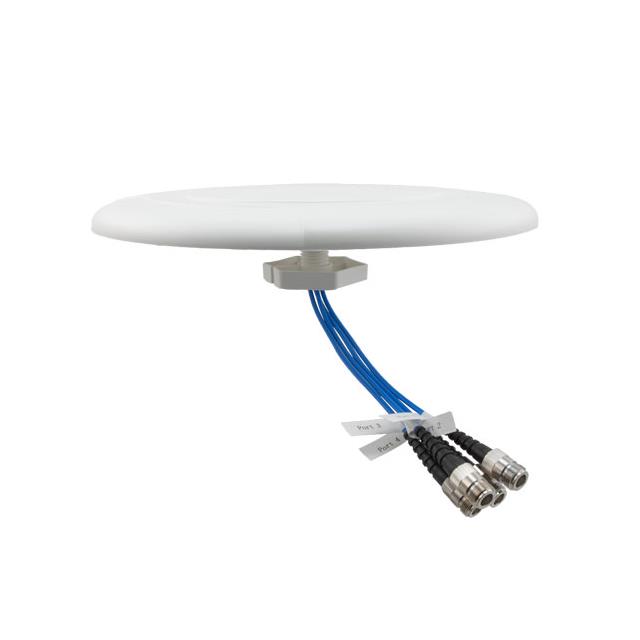

INDOOR CEILING OMNI ANTENNA, 6 D
HG65806QPCUPR-NF
ActivePasternack
INDOOR CEILING OMNI ANTENNA, 6 D
Description
General part information
HG65806QPCUPR-NF
RF ANTENNA 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M Dome N Type Female (4) Ceiling Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG65806QPCUPR-NF |
|---|---|
| Antenna Type | Dome |
| Applications | LoRa, CDMA, LTE-M, GSM, 5G, IoT, M2M, LPWAN, NB-IoT, LTE |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 5.4GHz, 657.5MHz, 3.65GHz, 2.197GHz, 829MHz |
| Frequency (Center/Band) - 1 | 657.5 MHz |
| Frequency (Center/Band) - 2 | 829 MHz |
| Frequency (Center/Band) - 3 | 2.197 GHz |
| Frequency (Center/Band) - 4 | 3.65 GHz |
| Frequency (Center/Band) - 5 | 5.4 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 6 GHz |
| Frequency Range (Min) | 617 MHz |
| Gain | 4.5 dBi |
| Height (Max) | 0.94 in |
| Mounting Type | Ceiling Mount |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| RF Family/Standard | Cellular |
| Termination | N Type Female, N Type Female (4) |
| Termination Count (N Type Female) | 4 |
| Termination Type | N Type Female |
| VSWR | 1.8 |
