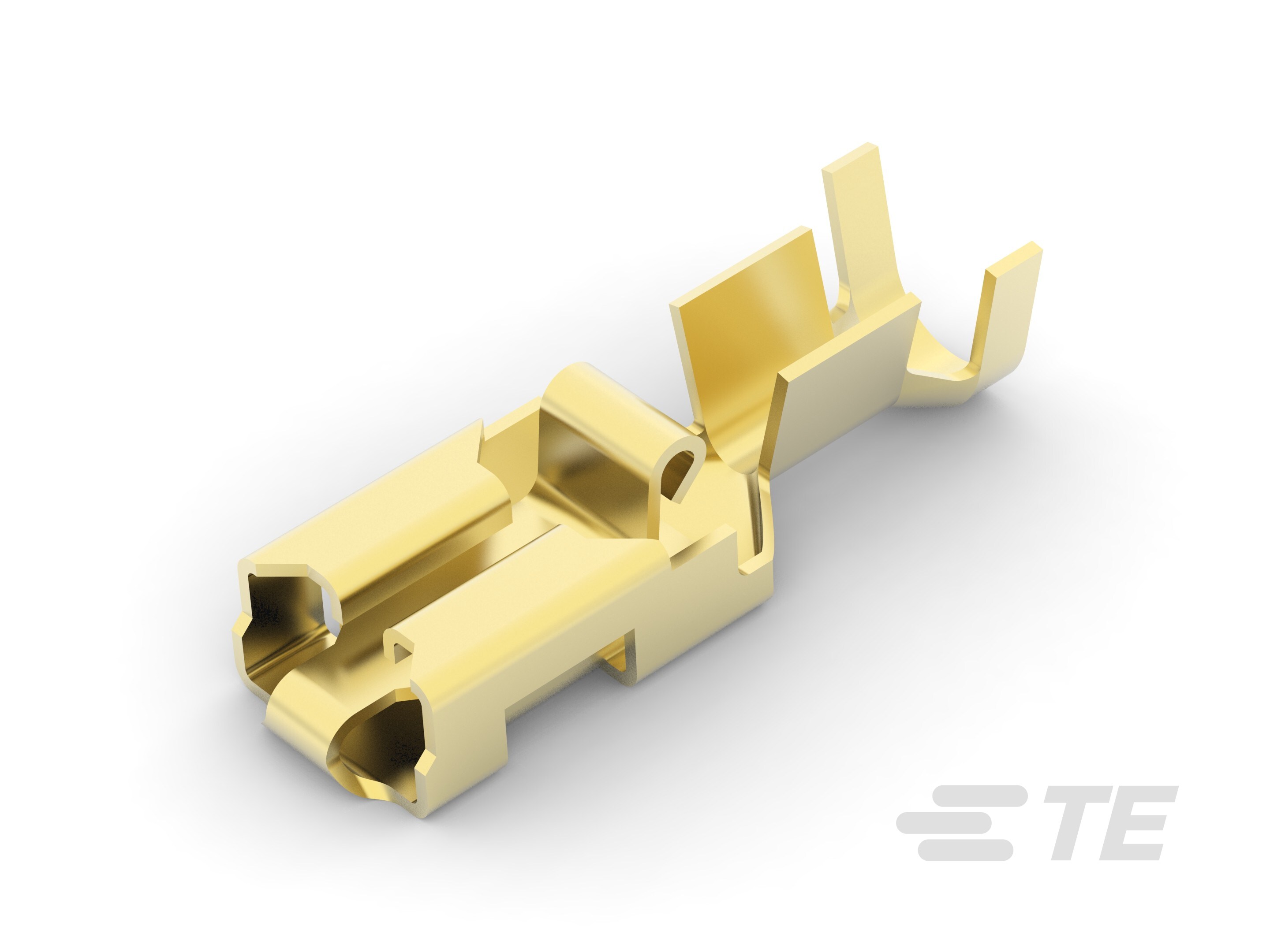

Specification	154717-1

Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Length - Overall	0.886 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge (AWG) (Max)	14 AWG
Wire Gauge (AWG) (Min)	11 AWG

Mark I Series

Part	Note	Material	Related Product Length	For Use With/Related Products	Terminal Type	Terminal Size	Color	Mounting Type	Gender	Style	Number of Positions	Stacking Direction	Contact Material	Contact Finish	Length - Overall	Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Tab Width	Tab Thickness	Insulation	Insulation Diameter (Max)	Insulation Diameter (Min)
TE Connectivity AMP Connectors 1-2133341-1	Contacts Not Included	6 Nylon 6 Polyamide (PA66)	0.25 in	0.250" (6.35mm) Quick Connects Quick Connects	Disconnect Quick Connect	0.25 in	Natural	Free Hanging (In-Line)	Female Receptacle	Housing	1
TE Connectivity AMP Connectors 1-1969717-2					Disconnect Quick Connect	0.25 in	Black	Free Hanging (In-Line)	Female Receptacle	Housing	2	Top to Bottom
TE Connectivity AMP Connectors 1969630-2					Disconnect Quick Connect	0.25 in	Natural	Free Hanging (In-Line)	Female Receptacle	Housing	1
TE Connectivity AMP Connectors 154718-7					Standard			Free Hanging (In-Line)	Female				Phosphor Bronze	Tin	0.886 in	Crimp	18 AWG	14 AWG	0.25 in	0.032 in	Non-Insulated
TE Connectivity AMP Connectors 8-154719-3			0.25 in	0.250" (6.35mm) Quick Connects Quick Connects	Disconnect Quick Connect	0.25 in	Terracotta	Free Hanging (In-Line)	Female Receptacle	Housing	1
TE Connectivity AMP Connectors 160759-3					Standard			Free Hanging (In-Line)	Female				Brass	Tin	0.878 in	Crimp	20.5 AWG	16 AWG	0.25 in	0.032 in	Non-Insulated	0.13 in	0.091 in
TE Connectivity AMP Connectors 154717-4					Standard			Free Hanging (In-Line)	Female				Phosphor Bronze	Tin	0.886 in	Crimp	14 AWG	11 AWG	0.25 in	0.032 in	Non-Insulated
TE Connectivity AMP Connectors 154718-1					Standard			Free Hanging (In-Line)	Female				Brass		0.886 in	Crimp	18 AWG	14 AWG	0.25 in	0.032 in	Non-Insulated	0.126 in	0.094 in
TE Connectivity AMP Connectors 63812-1
TE Connectivity AMP Connectors 880646-6					Standard			Free Hanging (In-Line)	Female				Phosphor Bronze	Tin	0.811 in	Crimp	20.5 AWG	17 AWG	0.25 in	0.032 in	Non-Insulated	0.13 in	0.079 in
