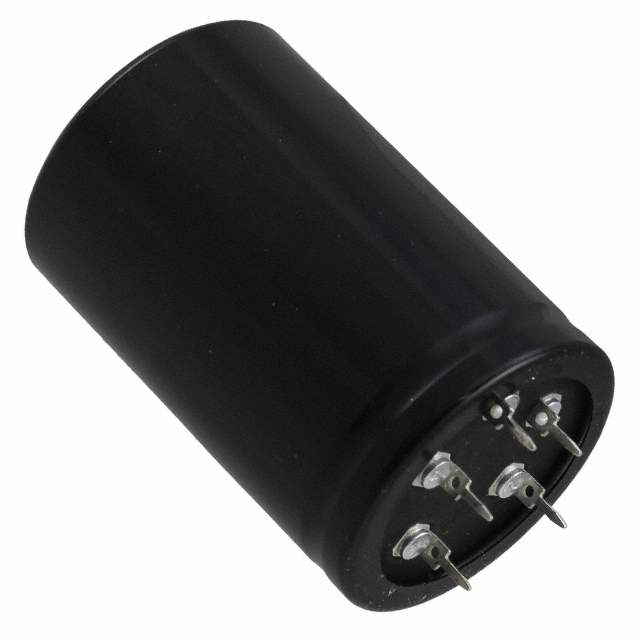

B43521C5687M000
ActiveEPCOS - TDK Electronics
CAP ALUM 680UF 20% 450V RADIAL
B43521C5687M000
ActiveEPCOS - TDK Electronics
CAP ALUM 680UF 20% 450V RADIAL
Description
General part information
B43521C5687M000
680 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - 5 Lead 230mOhm @ 100Hz 12000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B43521C5687M000 |
|---|---|
| Applications | General Purpose |
| Capacitance | 680 µF |
| ESR (Equivalent Series Resistance) | 230 mOhm |
| Height - Seated (Max) | 2.52 in |
| Impedance | 240 mOhm |
| Lifetime | 12000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 5 Lead |
| Package Name | Radial, Can |
| Polarization | Polar |
| Ripple Current | 3.9 A |
| Size / Dimension Diameter | 1.575 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
