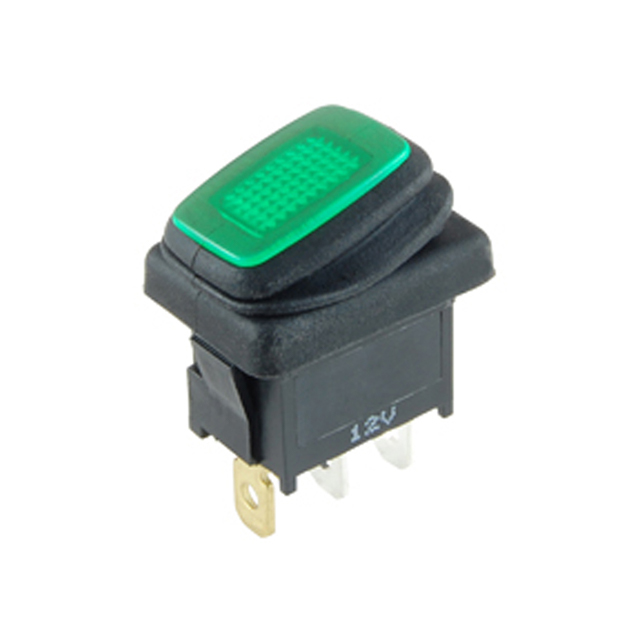

54-204W

Active

NTE Electronics, Inc

SWITCH ROCKER SPST 16A 125V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

SWITCH ROCKER SPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	54-204W

Actuator Marking	No Marking
Actuator Type	Flat - Illuminated
Circuit	SPST
Color - Actuator/Cap	Green
Current Rating (Amps)	16 A
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V

SWITCH ROCKER SPST 16A 125V

Part	Termination Style	Voltage Rating - AC	Color - Actuator/Cap	Actuator Type	Illumination Type, Color	Circuit	Actuator Marking	Current Rating (Amps)	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Ingress Protection	Switch Function
NTE Electronics, Inc 54-204W	Solder Lug	125 V	Green	Flat - Illuminated	Green, LED	SPST	No Marking	16 A	12 VDC	85 °C	-20 C	Panel Mount, Snap-In	IP65 - Dust Tight, Water Resistant	On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
