108944-1

Active

Beyond LED Technology

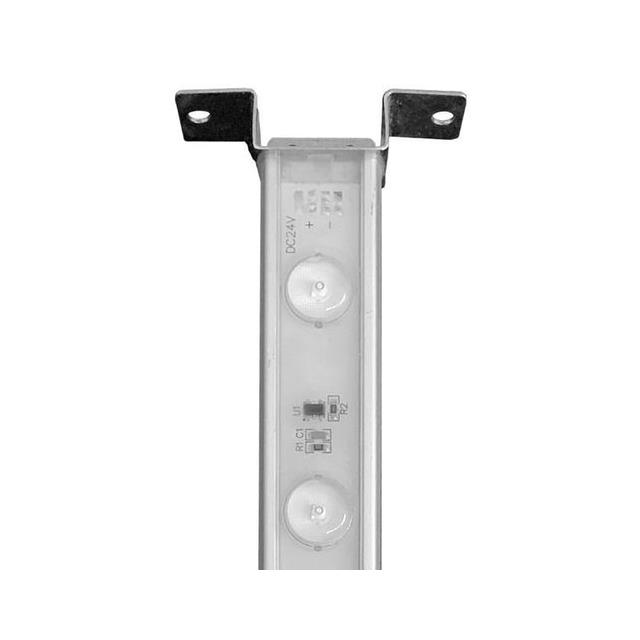

LED LIGHT BOX LINEAR BAR SINGLE

Search across all available documentation for this part.

Active

Beyond LED Technology

LED LIGHT BOX LINEAR BAR SINGLE

Technical Specifications

Parameters and characteristics for this part

Specification	108944-1

CCT (K)	6500 K
Color	Cool, White
Configuration	Linear Light Strip, Plug and Play
CRI (Color Rendering Index)	80
Features	IP66
Height [z]	21.87 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	118 lm/W
Luminous Flux @ Current/Temperature	3480 lm
Size / Dimension [x]	2994.66 mm
Size / Dimension [y]	555.5 mm
Type	LED Module
Viewing Angle	160 °
Voltage - Forward (Vf) (Typ)	188.5 VAC

LED LIGHT BOX LINEAR BAR SINGLE

Part	Color	Type	Configuration	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	CRI (Color Rendering Index)	Lens Type	Viewing Angle	Lumens/Watt @ Current - Test	Height [z]	Voltage - Forward (Vf) (Typ)	Features
Beyond LED Technology 108944-1	Cool, White	LED Module	Linear Light Strip, Plug and Play	3480 lm	555.5 mm	2994.66 mm	6500 K	80	Flat	160 °	118 lm/W	21.87 mm	188.5 VAC	IP66

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 120.00

General part information

LED Lighting COBs Engines Modules LED Module - White, Cool Linear Light Strip, Plug and Play
