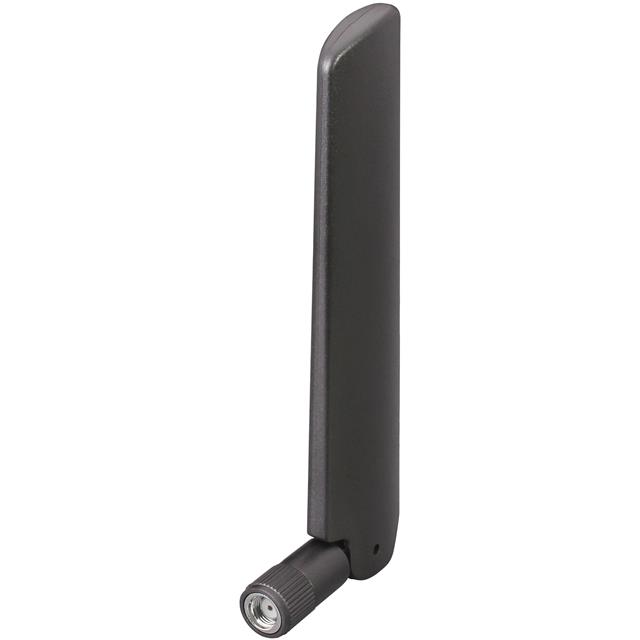

ANT-W63WS5-RPS

ANT-W63WS5-RPS

Active
TE Connectivity AMP Connectors

ANTENNA BLADE WIFI6/6E SWIVEL RPS

Find alt
ANT-W63WS5-RPS

ANT-W63WS5-RPS

Active
TE Connectivity AMP Connectors

ANTENNA BLADE WIFI6/6E SWIVEL RPS

Find alt

Description

General part information

ANT-W63WS5-RPS

Terminal/Duck Antenna, Triple Band, Wi-Fi, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, > 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationANT-W63WS5-RPS
Antenna TypeTilt, Blade
Applications802.11ac/ax/be/b/g/n, WLAN, Zigbee™, Bluetooth
Frequency (Center/Band)2.44GHz, 5.5GHz, 5.025GHz
Frequency GroupSHF, UHF
Frequency Group Maximum (UHF)3 GHz
Frequency Group Minimum (SHF)4 GHz
Frequency Group Minimum (UHF)2 GHz
Frequency Range (Band 1) Maximum2.485 GHz
Frequency Range (Band 1) Minimum2.4 GHz
Frequency Range (Band 2) Maximum5.85 GHz
Frequency Range (Band 2) Minimum5.15 GHz
Frequency Range (Band 3) Maximum7.125 GHz
Frequency Range (Band 3) Minimum5.925 GHz
Gain4.9dBi, 4dBi, 8.4dBi
Gain4 dBi, 4.9 dBi, 8.4 dBi
Height (Max)5.339 in
Mounting TypeConnector Mount
Number of Bands3
Power - Max10 VA
RF Family/Standard802.15.4, Bluetooth, WiFi
Termination TypeRP-SMA Male
VSWR2.1, 2, 1.3
