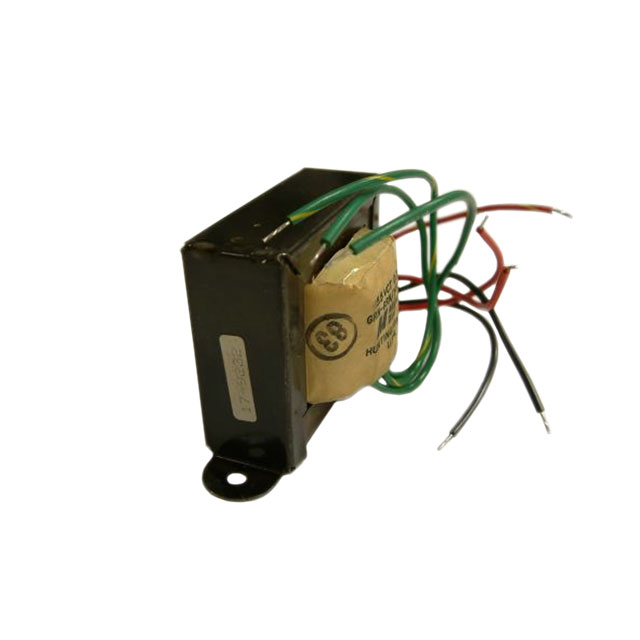

F-195X
ActiveTriad Magnetics
PWR XFMR LAMINATED 19.63VA CHAS
F-195X
ActiveTriad Magnetics
PWR XFMR LAMINATED 19.63VA CHAS
Description
General part information
F-195X
PWR XFMR LAMINATED 19.63VA CHAS
Technical Specifications
Parameters and characteristics for this part
| Specification | F-195X |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) Options | 250mA, 750mA |
| Height - Seated (Max) | 57.15 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 19.63 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 95.25 mm |
| Size / Dimension Width | 47.63 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 15.5V, 32V |
| Weight | 1.3 lbs |
