FERRITE CORE EP 6.7UH N30 2PCS
B65847A0000R030
ActiveEPCOS - TDK Electronics
FERRITE CORE EP 6.7UH N30 2PCS
Description
General part information
B65847A0000R030

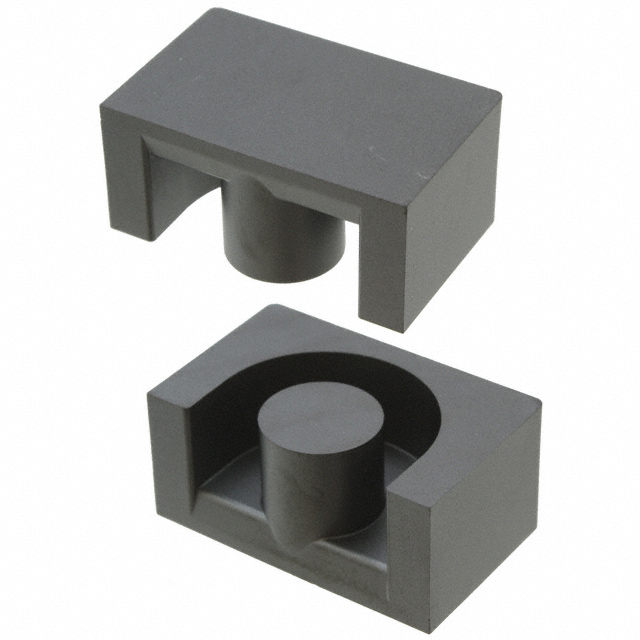

Uncoated N30 Ferrite Core EP Type 0.965" (24.50mm) Length 0.602" (15.30mm) Width Diameter 0.425" (10.80mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | B65847A0000R030 |
|---|---|
| Core Factor (ΣI/A) mm⁻¹ | 0.51 mm⁻¹ |
| Core Type | EP |
| Effective Area (Ae) | 78 mm² |
| Effective Length (le) | 40 mm |
| Effective Magnetic Volume (Ve) | 3120 mm³ |
| Effective Permeability (µe) | 2730 |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 0.425 in |
| Inductance Factor (Al) | 6.7 µH |
| Initial Permeability (µi) | 5200 |
| Length | 0.965 in |
| Material | N30 |
| Minimum Core Cross Section (Amin) (mm²) | 60 mm² |
| Package Name | EP 20 |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 30 % |
| Width | 0.602 in |
