87988-5
ActiveTE Connectivity AMP Connectors

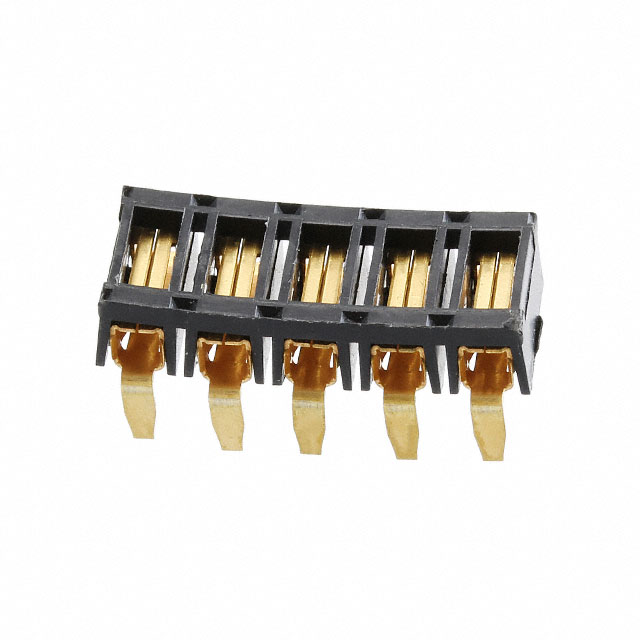

CONN RCPT 5P 0.156 GOLD PCB R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87988-5
ActiveTE Connectivity AMP Connectors
CONN RCPT 5P 0.156 GOLD PCB R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87988-5 | 87988 Series |
|---|---|---|
| Connector Type | Receptacle | Receptacle |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | Flash | Flash |
| Contact Length - Post | 0.145 in | 0.145 in |
| Contact Length - Post | 3.68 mm | 3.68 mm |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 4.45 mm | 4.45 mm |
| Insulation Height | 0.175 in | 0.175 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | - | 4 - 19 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.156 in | 0.156 in |
| Pitch - Mating | 3.96 mm | 3.96 mm |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
87988 Series
CONN RCPT 6P 0.156 GOLD PCB R/A
| Part | Number of Rows | Style | Termination | Mounting Type | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Finish - Mating | Insulation Material | Number of Positions | Contact Finish Thickness - Post | Contact Material | Contact Type | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Insulation Color | Fastening Type | Connector Type | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 87988-6 | 1 | Board to Board, Cable | Solder | Through Hole, Right Angle | 0.156 in | 3.96 mm | -65 ░C | 105 ░C | UL94 V-0 | All | 4.45 mm | 0.175 in | Gold | Thermoplastic | 6 | Flash | Phosphor Bronze | Female Socket | Square | 30 Áin | 0.76 Ám | Gold | Black | Push-Pull | Receptacle | 0.145 in | 3.68 mm |
TE Connectivity AMP Connectors 87988-3 | 1 | Board to Board, Cable | Solder | Through Hole, Right Angle | 0.156 in | 3.96 mm | -65 ░C | 105 ░C | UL94 V-0 | All | 4.45 mm | 0.175 in | Gold | Thermoplastic | Flash | Phosphor Bronze | Female Socket | Square | 30 Áin | 0.76 Ám | Gold | Black | Push-Pull | Receptacle | 0.145 in | 3.68 mm | |
TE Connectivity AMP Connectors 87988-8 | 1 | Board to Board, Cable | Solder | Through Hole, Right Angle | 0.156 in | 3.96 mm | -65 ░C | 105 ░C | UL94 V-0 | All | 4.45 mm | 0.175 in | Gold | Thermoplastic | 8 | Flash | Phosphor Bronze | Female Socket | Square | 30 Áin | 0.76 Ám | Gold | Black | Push-Pull | Receptacle | 0.145 in | 3.68 mm |
TE Connectivity AMP Connectors 87988-4 | 1 | Board to Board, Cable | Solder | Through Hole, Right Angle | 0.156 in | 3.96 mm | -65 ░C | 105 ░C | UL94 V-0 | All | 4.45 mm | 0.175 in | Gold | Thermoplastic | 4 | Flash | Phosphor Bronze | Female Socket | Square | 30 Áin | 0.76 Ám | Gold | Black | Push-Pull | Receptacle | 0.145 in | 3.68 mm |
TE Connectivity AMP Connectors 87988-5 | 1 | Board to Board, Cable | Solder | Through Hole, Right Angle | 0.156 in | 3.96 mm | -65 ░C | 105 ░C | UL94 V-0 | All | 4.45 mm | 0.175 in | Gold | Thermoplastic | Flash | Phosphor Bronze | Female Socket | Square | 30 Áin | 0.76 Ám | Gold | Black | Push-Pull | Receptacle | 0.145 in | 3.68 mm | |
TE Connectivity AMP Connectors 1-87988-0 | 1 | Board to Board, Cable | Solder | Through Hole, Right Angle | 0.156 in | 3.96 mm | -65 ░C | 105 ░C | UL94 V-0 | All | 4.45 mm | 0.175 in | Gold | Thermoplastic | 10 | Flash | Phosphor Bronze | Female Socket | Square | 30 Áin | 0.76 Ám | Gold | Black | Push-Pull | Receptacle | 0.145 in | 3.68 mm |
TE Connectivity AMP Connectors 1-87988-9 | 1 | Board to Board, Cable | Solder | Through Hole, Right Angle | 0.156 in | 3.96 mm | -65 ░C | 105 ░C | UL94 V-0 | All | 4.45 mm | 0.175 in | Gold | Thermoplastic | 19 | Flash | Phosphor Bronze | Female Socket | Square | 30 Áin | 0.76 Ám | Gold | Black | Push-Pull | Receptacle | 0.145 in | 3.68 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 10.11 | |
| 10 | $ 9.15 | |||
| 130 | $ 7.94 | |||
| 520 | $ 7.60 | |||
| 1040 | $ 6.78 | |||
Description
General part information
87988 Series
5 Position Receptacle Connector 0.156" (3.96mm) Through Hole, Right Angle Gold
