9WP0812H4D011
ActiveSanyo Denki America Inc.

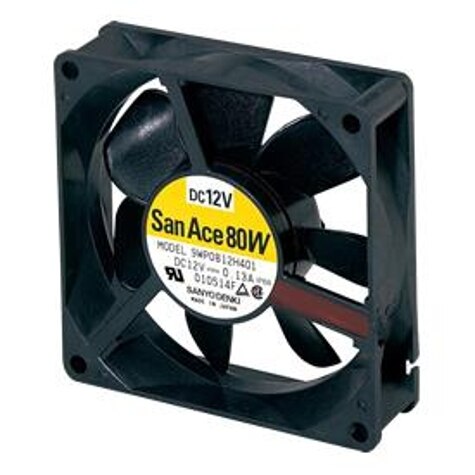

FAN AXIAL 80X25MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9WP0812H4D011
ActiveSanyo Denki America Inc.
FAN AXIAL 80X25MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9WP0812H4D011 |
|---|---|
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 29 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 1.56 W |
| RPM | 2900 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 0.142 in H2O |
| Static Pressure | 35.4 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 10.2 VDC |
| Weight | 130.18 g |
| Weight | 0.287 lb |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 40 | $ 25.12 | |
Description
General part information
9WP0812H4D011
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 36.4 CFM (1.02mł/min) 3 Wire Leads
