794071-1

Active

TE Connectivity AMP Connectors

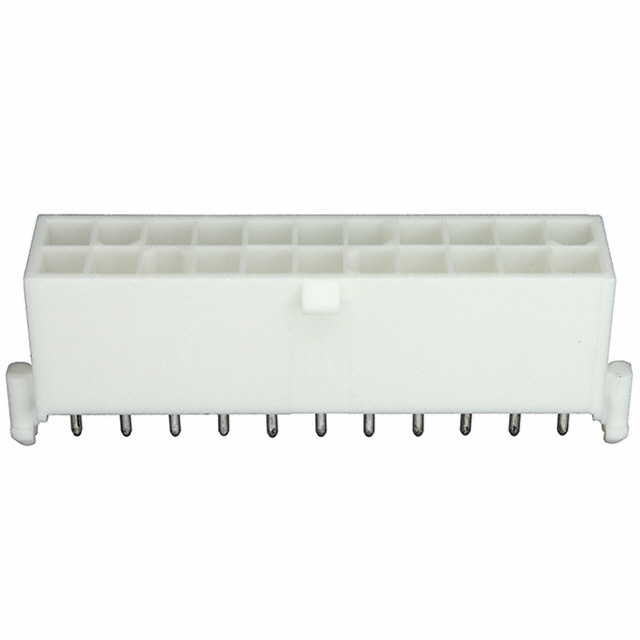

CONN HEADER VERT 22POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 22POS 4.14MM

Technical Specifications

Parameters and characteristics for this part

Specification	794071-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	150 Áin
Contact Finish Thickness - Mating	3.81 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	White
Insulation Height	13.5 mm
Insulation Height	0.531 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch - Mating	4.14 mm
Pitch - Mating	0.163 in
Row Spacing - Mating	4.14 mm
Row Spacing - Mating	0.163 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

CONN HEADER VERT 22POS 4.14MM

Part	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Finish - Mating	Number of Rows	Mounting Type	Voltage Rating	Contact Shape	Number of Positions	Contact Finish - Post	Fastening Type	Applications	Current Rating (Amps)	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Termination	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Material	Connector Type
TE Connectivity AMP Connectors 794071-1	Shrouded - 4 Wall	4.14 mm	0.163 in	Nylon, Polyamide (PA)	Tin-Lead	2	Through Hole	600 VAC	Circular	22 positions	Tin-Lead	Locking Ramp	General Purpose	Varies by Wire Gauge	Male Pin	4.14 mm	0.163 in	150 Áin	3.81 Ám	13.5 mm	0.531 in	4.45 mm	0.175 in	All	Solder	UL94 V-0	150 Áin	3.81 Ám	Board to Cable/Wire	85 °C	-20 C	White	Brass	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 22 position 0.163" (4.14mm)
