SGD 24-M-420
ActiveLascar Electronics

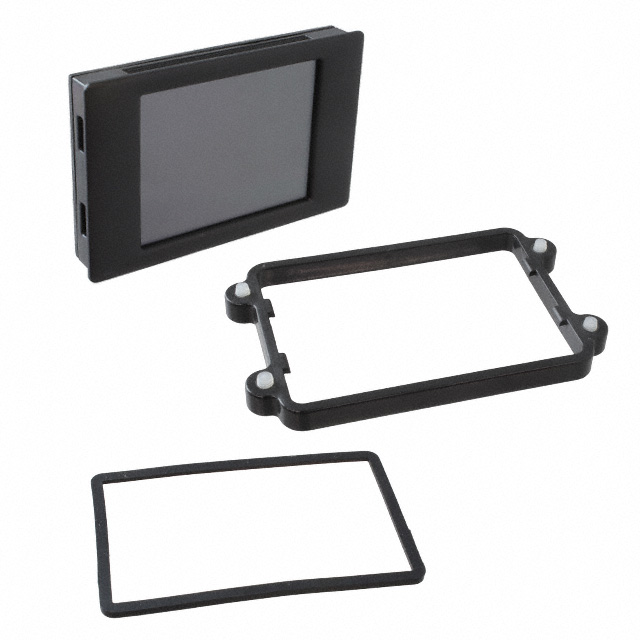

2.4" PROG 4-20MA PROCESS METER
Deep-Dive with AI
Search across all available documentation for this part.
SGD 24-M-420
ActiveLascar Electronics
2.4" PROG 4-20MA PROCESS METER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SGD 24-M-420 | SGD 24 Series |
|---|---|---|
| Display Type | TFT - Color (Touch) | TFT - Color (Touch) |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Measuring Range | - | 0 V |
| Measuring Range | - | 40 VDC |
| Measuring Type | Process | Process, Voltage |
| Operating Temperature | - | 40 °C |
| Operating Temperature | - | 0 °C |
| Panel Cutout Dimensions | - | 33 mm |
| Panel Cutout Dimensions [x] | 74 mm | 74 mm |
| Panel Cutout Dimensions [y] | 46 mm | 46 mm |
| Termination Style | Screw Terminal | PC Pin, Connector, Screw Terminal |
| Type | Process Meter | Process Meter, Voltmeter |
| Voltage - Supply [Max] | 30 VDC | 30 VDC |
| Voltage - Supply [Min] | 4 V | 4 V |
SGD 24 Series
2.4" WATERPROOF PROG 4-20MA
| Part | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Measuring Range [Min] | Measuring Range [Max] | Measuring Type | Panel Cutout Dimensions [diameter] | Voltage - Supply [Max] | Voltage - Supply [Min] | Type | Display Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lascar Electronics SGD 24-M-IP420 | PC Pin | 40 °C | 0 °C | IP67 - Dust Tight, Waterproof | 0 V | 40 VDC | Process | 33 mm | 30 VDC | 4 V | Process Meter | TFT - Color (Touch) | ||
Lascar Electronics SGD 24-M-IP | Connector | 40 °C | 0 °C | IP67 - Dust Tight, Waterproof | 0 V | 40 VDC | Voltage | 33 mm | 30 VDC | 4 V | Voltmeter | TFT - Color (Touch) | ||
Lascar Electronics SGD 24-M-420 | Screw Terminal | Process | 30 VDC | 4 V | Process Meter | TFT - Color (Touch) | 74 mm | 46 mm | ||||||
Lascar Electronics SGD 24-M | Screw Terminal | 40 °C | 0 °C | 0 V | 40 VDC | Voltage | 30 VDC | 4 V | Voltmeter | TFT - Color (Touch) | 74 mm | 46 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 139.49 | |
Description
General part information
SGD 24 Series
Process Meter TFT - Color (Touch) Display Panel Mount
