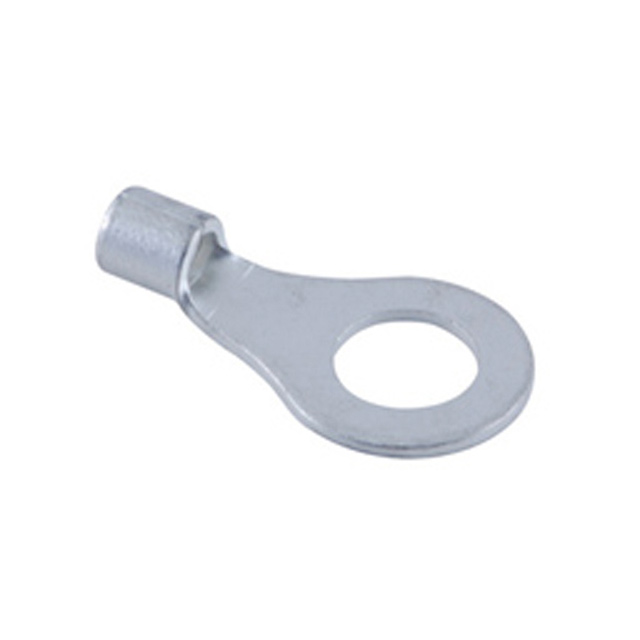

76-RT16-08L
ActiveNTE Electronics, Inc
NON INS RING TERM 16-14WG 50 BAG
76-RT16-08L
ActiveNTE Electronics, Inc
NON INS RING TERM 16-14WG 50 BAG
Description
General part information
76-RT16-08L
Ring Terminal Connector 8 Stud Circular 14-16 AWG Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 76-RT16-08L |
|---|---|
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 0.768 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Width - Outer Edges | 0.26 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
