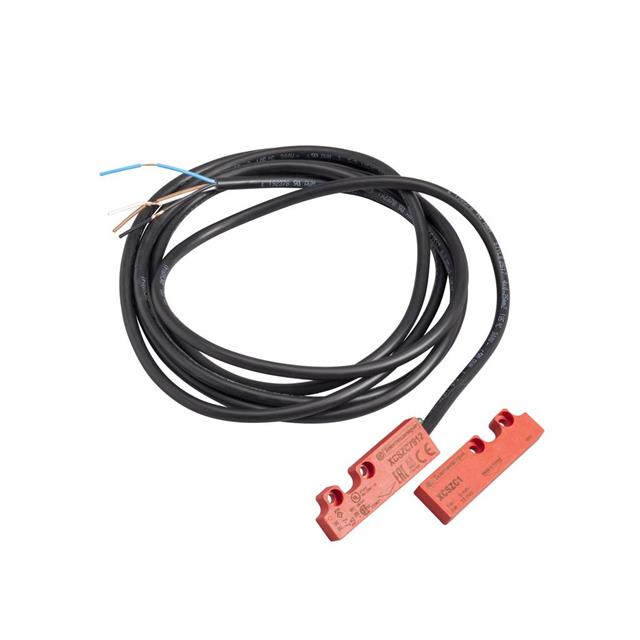

XCSDMC5912
ActiveSCHNEIDER ELECTRIC
INTERLOCK MAGNETIC DPST
XCSDMC5912
ActiveSCHNEIDER ELECTRIC
INTERLOCK MAGNETIC DPST
Description
General part information
XCSDMC5912
INTERLOCK MAGNETIC DPST
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSDMC5912 |
|---|---|
| Actuator Type | Non-Contact |
| Approval Agency | UL, CSA |
| Circuit | DPST-NO/NC |
| Current Rating | 100 mA |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Must Operate (Length) | 5 mm |
| Must Release | 15 mm |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Cable Leads |
| Type | Magnetic |
| Voltage Rating | 24 V |
