BAC543
ActivePasternack
BNC M RIGHT ANGLE 75 OHM R59
BAC543
ActivePasternack
BNC M RIGHT ANGLE 75 OHM R59
Description
General part information
BAC543

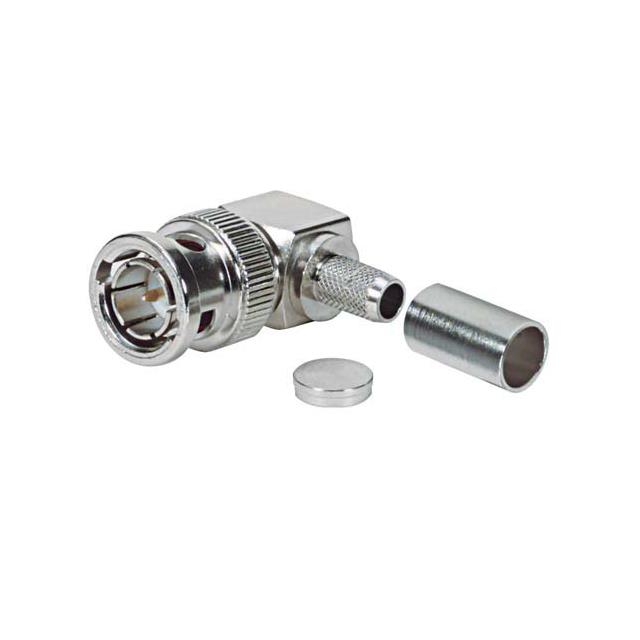

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | BAC543 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-59 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
