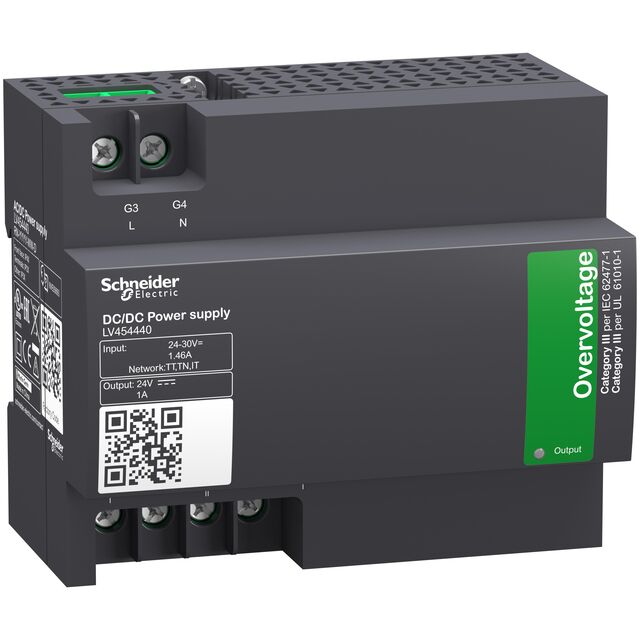

LV454440
ActiveSCHNEIDER ELECTRIC
24VDC POWER SUPPLY AD MODULE 24/
Description
General part information
LV454440
24VDC POWER SUPPLY AD MODULE 24/
Technical Specifications
Parameters and characteristics for this part
| Specification | LV454440 |
|---|---|
| Applications | Laboratory |
| Approval Agency | UL, EAC, CE |
| Current - Output (Max) | 1 A |
| DC Voltage - Input (Max) | 36 V |
| DC Voltage - Input (Min) | 19.2 V |
| Efficiency | 80 % |
| Input Type | DC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 24 W |
| Size / Dimension Height | 3.54 in |
| Size / Dimension Length | 2.66 in |
| Size / Dimension Width | 4.25 in |
| Standard Number | 61010-1 |
| Voltage - Isolation | 3.68 kV |
| Voltage - Output 1 | 24 V |
