354872-E
ActiveTE Connectivity AMP Connectors
STVE 48 M ACE GGG 4-00 1006 * * 247 E007
354872-E
ActiveTE Connectivity AMP Connectors
STVE 48 M ACE GGG 4-00 1006 * * 247 E007
Description
General part information
- Series

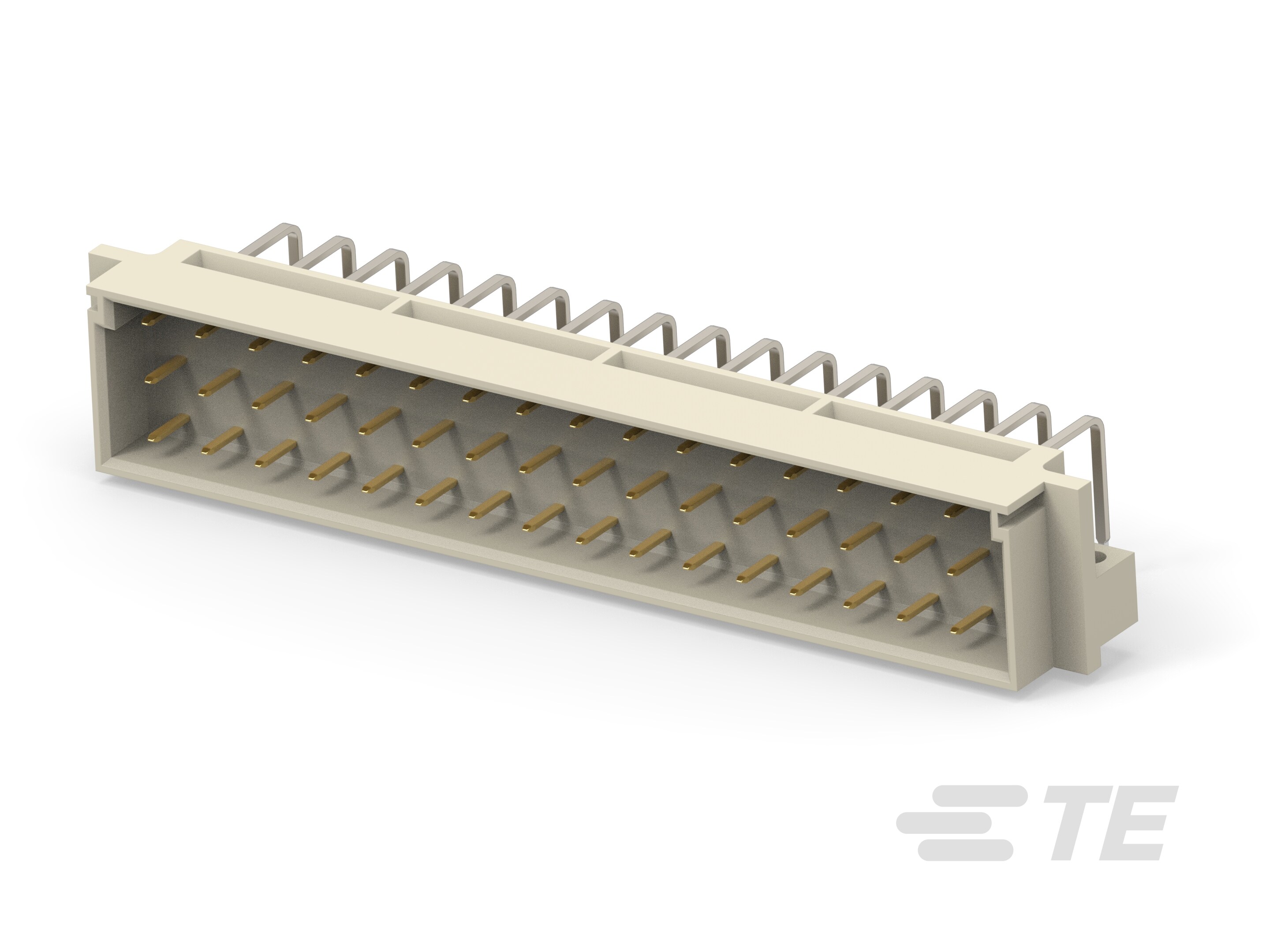

Plug, Board-to-Board, 48 Position, 5.08 mm [.2 in] Centerline, Printed Circuit Board, 3 Row, Vertical, 16 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 354872-E |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 48 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 5.08 mm |
| Style | E |
| Termination | Solder |
