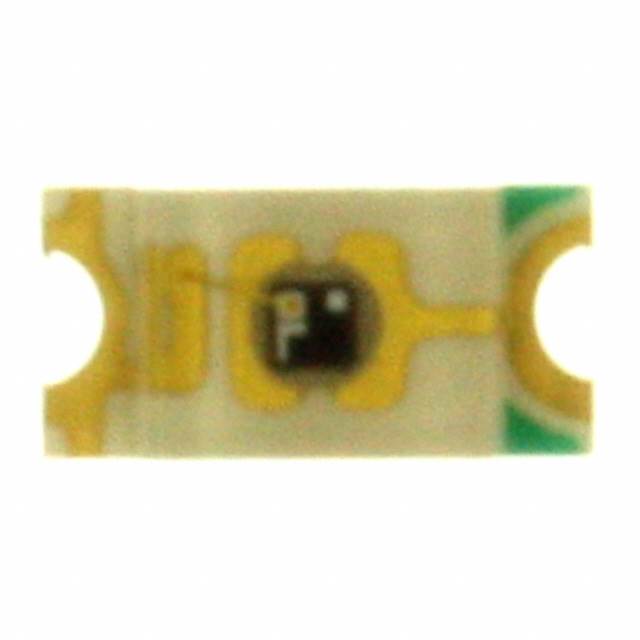

Specification	OP521DA

Current - Collector (Ic) (Max)	0.03 mA
Current - Dark (Id) (Max)	200 nA
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	Top View
Package / Case	1206 (3216 Metric)
Power - Max	100 mW
Viewing Angle	150 °
Voltage - Collector Emitter Breakdown (Max)	35 V
Wavelength	935 nm
