Description
General part information
3321-20-1-0500-007-1-TS

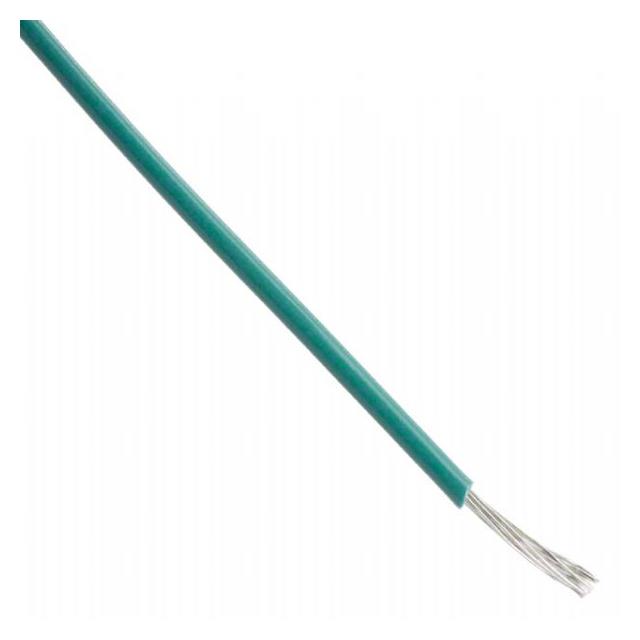

20 AWG Hook-Up Wire 21/0.0071" Green 600V 500.0' (152.4m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 3321-20-1-0500-007-1-TS |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 21 |
| Conductor Strand Diameter | 0.0071 in |
| Jacket (Insulation) Diameter | 0.1 in |
| Jacket (Insulation) Material | Polyethylene (XLPE), Irradiated |
| Jacket (Insulation) Thickness | 0.032 in, 0.0031 in |
| Jacket Color | Green |
| Length | 500 ft |
| Length | Enter Number of Feet in Order Quantity |
| Operating Temperature | 150 °C |
| Ratings | Style, 3321, UL |
| Spool Size | 500 ft |
| Voltage | 600 V |
| Wire Gauge | 20 AWG |
