1958424-1
ActiveTE Connectivity AMP Connectors
SOLIS R HR 26-22, #8 STUD
1958424-1
ActiveTE Connectivity AMP Connectors
SOLIS R HR 26-22, #8 STUD
Description
General part information
1958424-1

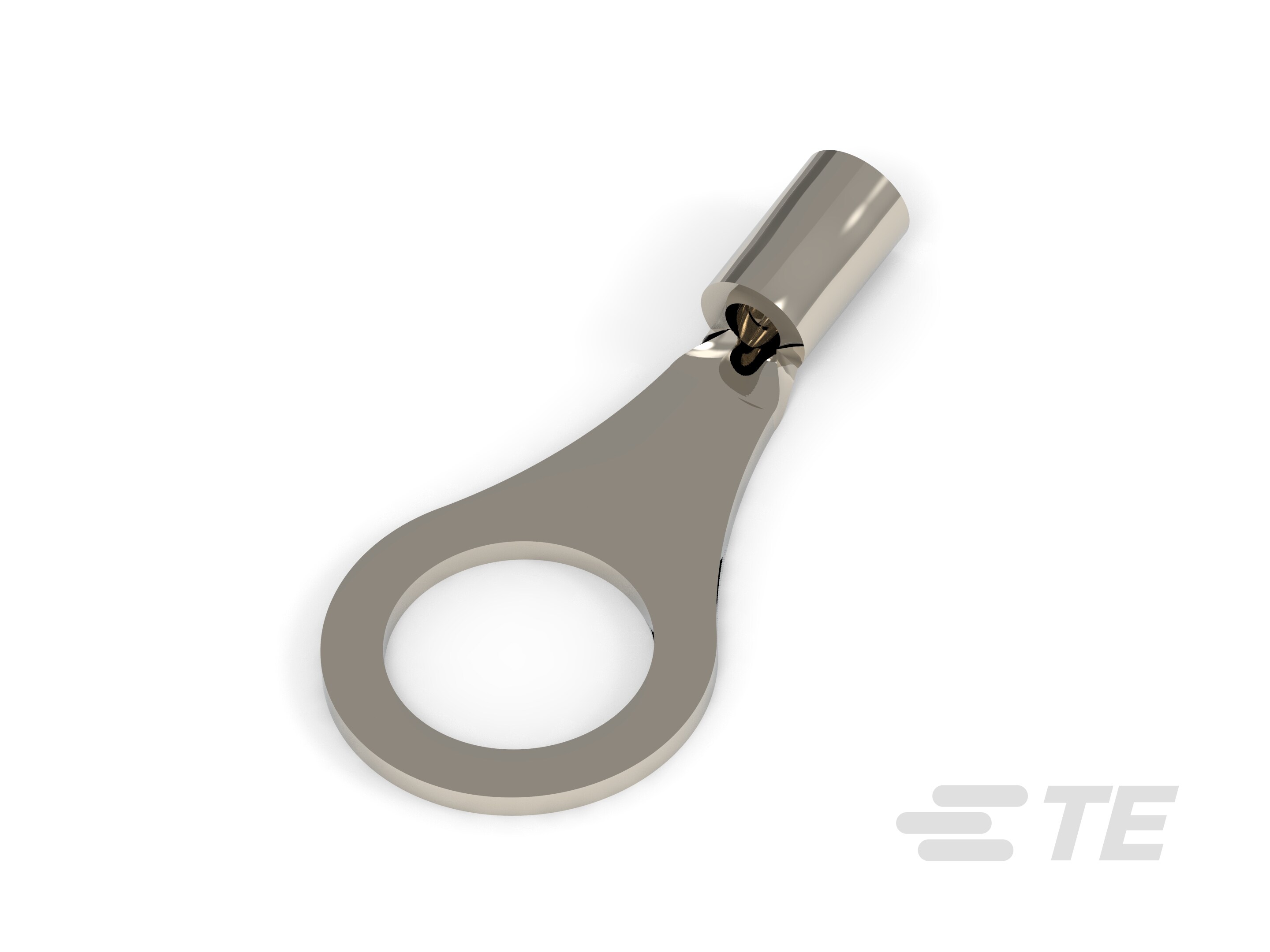

Closed Ring Tongue Terminal, 26 – 22 AWG, #8 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Nickel Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 1958424-1 |
|---|---|
| Contact Finish | Nickel |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall | 0.544 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.018 in |
| Width - Outer Edges | 0.25 in |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
