42547-2

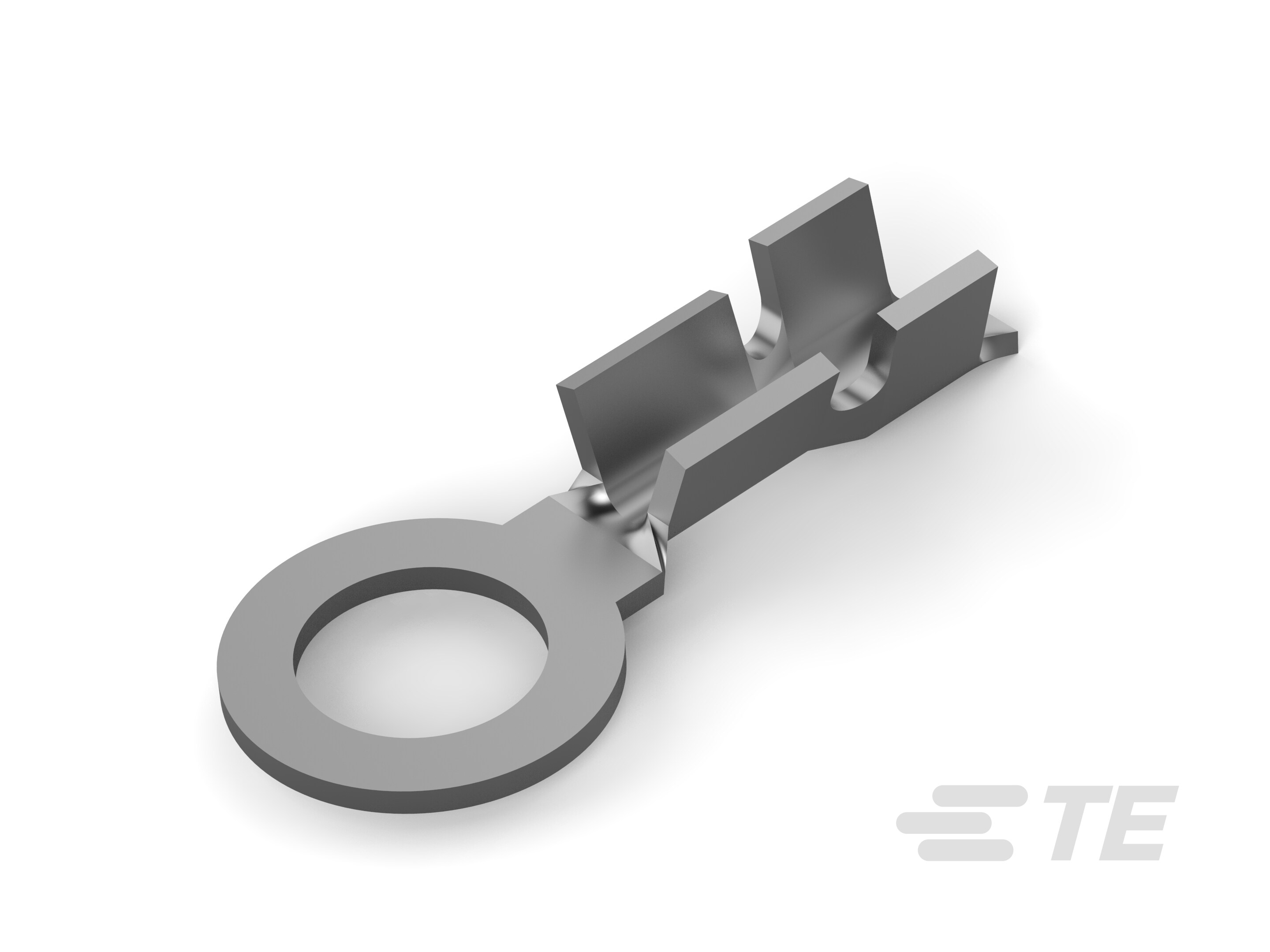

Closed Ring Tongue Terminal, 26 – 22 AWG, #4 / M2.5 Stud, 3.02 mm [.119 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 42547-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 0.425 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 4 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.014 in |
| Width - Outer Edges | 0.19 in |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
