031-325

Active

AMPHENOL RF

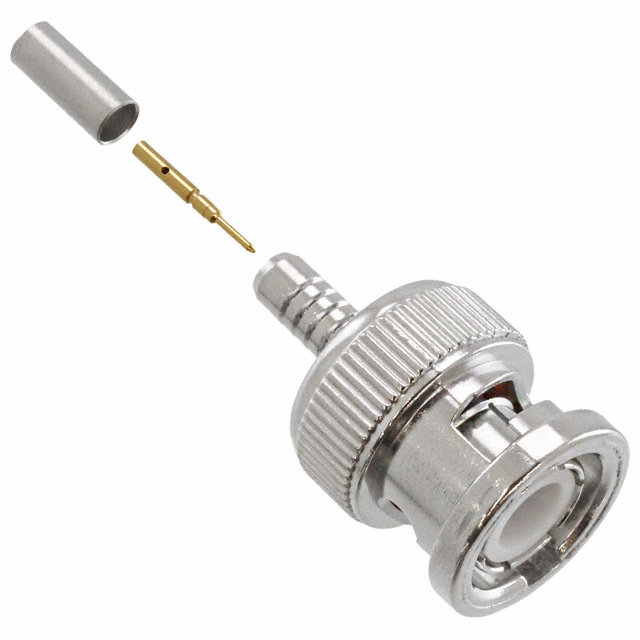

CONN BNC PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-325

Active

AMPHENOL RF

CONN BNC PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-325	031-32 Series

Adapter Series	-	BNC to BNC
Adapter Type	-	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	AT&T 735, 735A, Belden 735A1	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209, RG-55, 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, AT&T 735, 735A, Belden 735A1, B7806A, Belden 9907, RG-59 Double Braid, Belden 9231
Cable Group	-	142 - 400
Center Contact Material	Brass	Brass, Phosphor Bronze
Center Contact Plating	Gold	Gold, Silver
Center Gender	-	Female to Female
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Crimp	Crimp, Solder
Conversion Type	-	Same Series
Convert From (Adapter End)	-	BNC Jack, Female Socket
Convert To (Adapter End)	-	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector	1 Ferrule, 1 Contact, 1 Connector, 1 Braid Clamp, 1 Washer, 1 Gasket, 1 Clamp
Ingress Protection	-	Weatherproof
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp, Clamp
Voltage Rating	500 V	500 V

031-32 Series

CONN BNC PLUG STR 50 OHM CRIMP

Part	Body Finish	Body Material	Housing Color	Shield Termination	Cable Group	Includes	Center Contact Material	Mating Cycles	Center Contact Plating	Contact Termination	Frequency - Max [Max]	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Ports	Fastening Type	Voltage Rating	Mounting Type	Connector Type	Insertion Loss	Connector Style	Cable Group	Convert To (Adapter End)	Adapter Series	Conversion Type	Center Gender	Convert From (Adapter End)	Adapter Type	Ingress Protection
AMPHENOL RF 031-321-10RFX	Nickel	Brass	Silver	Crimp	140, 210, 59B, 62, 8263, 8279, 9209, Belden 8241, RG-59	1 Connector, 1 Contact, 1 Ferrule	Brass	500	Gold	Crimp	4 GHz	50 Ohms	-65 ░C	165 °C	Polyoxymethylene (POM) Acetal	1	Bayonet Lock	500 V	Free Hanging (In-Line)	Male Pin, Plug	0.2 dB	BNC
AMPHENOL RF 031-326	Nickel	Brass	Silver	Crimp	RG-55	1 Connector, 1 Contact, 1 Ferrule	Brass	500	Gold	Crimp, Solder	4 GHz	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Bayonet Lock	500 V	Free Hanging (In-Line)	Male Pin, Plug	0.2 dB	BNC	142, 223, 400
AMPHENOL RF 031-3220-1021																	Bayonet Lock							BNC Jack, Female Socket	BNC to BNC	Same Series	Female to Female	BNC Jack, Female Socket	Jack to Jack
AMPHENOL RF 031-3202	Nickel	Brass	Silver	Clamp	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer	Brass	500	Silver	Solder	4 GHz	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Bayonet Lock	500 V	Free Hanging (In-Line)	Male Pin, Plug	0.2 dB	BNC								Weatherproof
AMPHENOL RF 031-325	Nickel	Brass	Silver	Crimp	735A, AT&T 735, Belden 735A1	1 Connector, 1 Contact, 1 Ferrule	Brass	500	Gold	Crimp	4 GHz	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Bayonet Lock	500 V	Free Hanging (In-Line)	Male Pin, Plug	0.2 dB	BNC
AMPHENOL RF 031-327-RFX	Nickel	Brass	Silver	Crimp	141, 303, 58A, 58C, B7806A, Belden 9907, RG-58	1 Connector, 1 Contact, 1 Ferrule	Phosphor Bronze	500	Gold	Crimp	4 GHz	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Bayonet Lock	500 V	Free Hanging (In-Line)	Female Socket, Jack	0.2 dB	BNC
AMPHENOL RF 031-321-1012	Nickel	Brass	Silver	Crimp	RG-59 Double Braid, Belden 9231	1 Connector, 1 Contact, 1 Ferrule	Brass	500	Gold	Crimp	4 GHz	50 Ohms	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	1	Bayonet Lock	500 V	Free Hanging (In-Line)	Male Pin, Plug	0.2 dB	BNC
