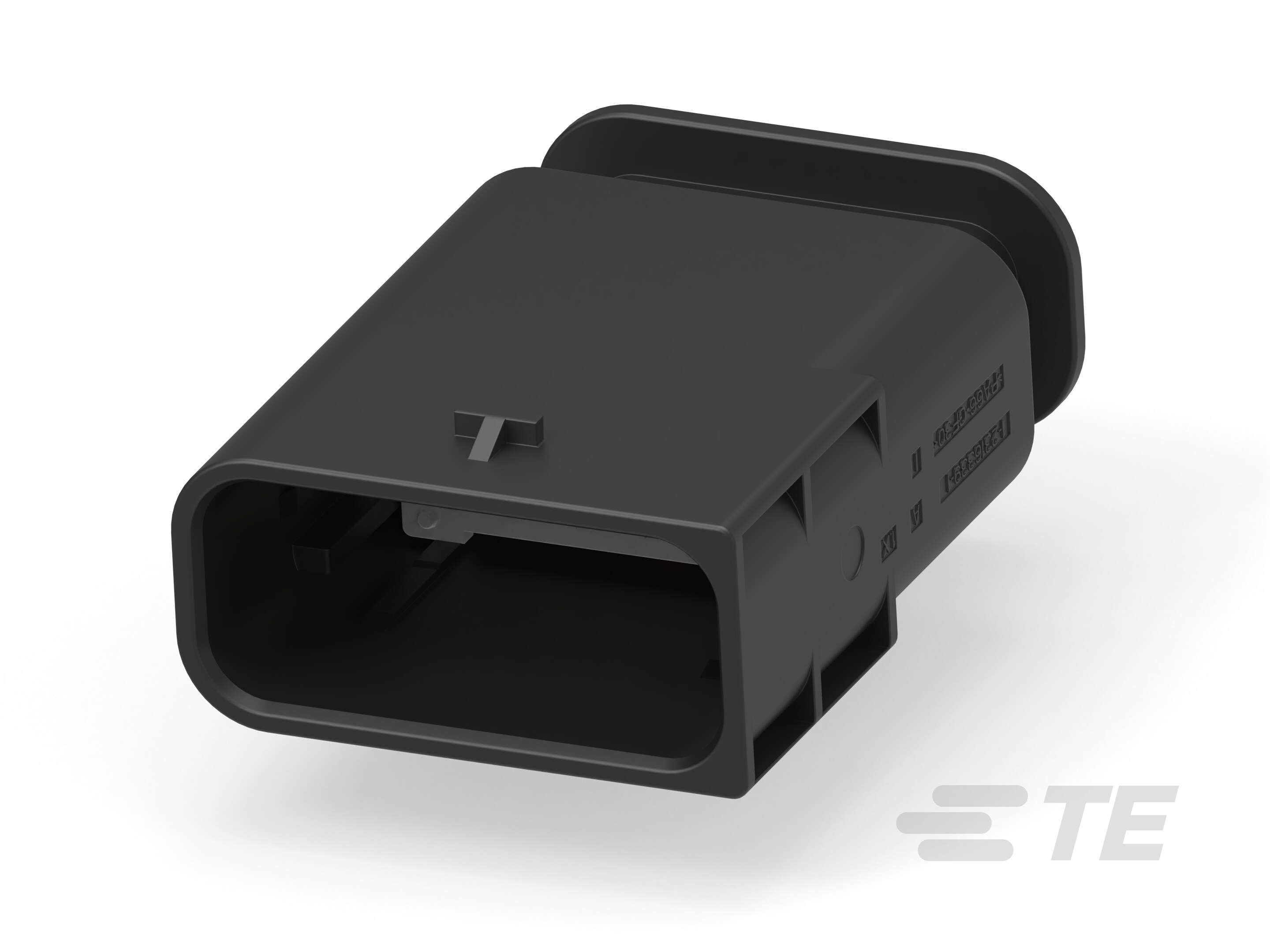

2-2316338-5
ActiveTE Connectivity AMP Connectors
12POS, MCON 1.2 LL TAB SEALED 2R
2-2316338-5
ActiveTE Connectivity AMP Connectors
12POS, MCON 1.2 LL TAB SEALED 2R
Description
General part information
2-2316338-5
12POS, MCON 1.2 LL TAB SEALED 2R
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2316338-5 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.157 in |
| Row Spacing | 0.157 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
