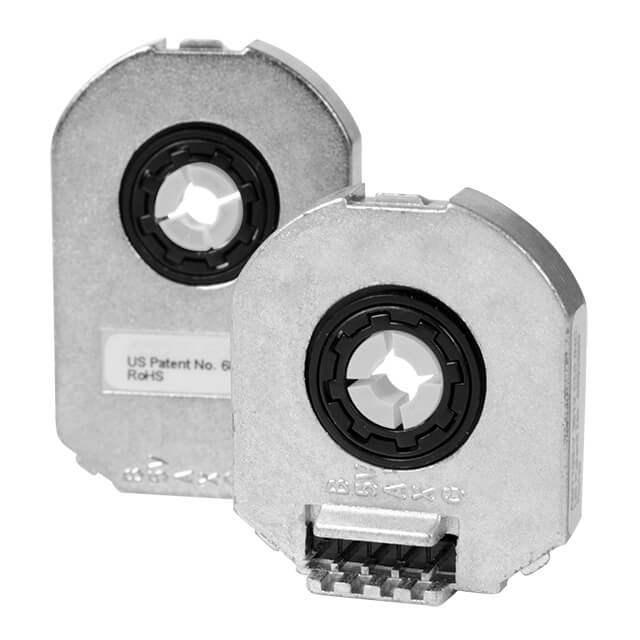

AMT102-D2048-I6350-S
ActiveSame Sky (Formerly CUI Devices)
ENC INCRE QUAD VERT TERMINAL PIN
AMT102-D2048-I6350-S
ActiveSame Sky (Formerly CUI Devices)
ENC INCRE QUAD VERT TERMINAL PIN
Description
General part information
AMT102-D2048-I6350-S
ENC INCRE QUAD VERT TERMINAL PIN
Technical Specifications
Parameters and characteristics for this part
| Specification | AMT102-D2048-I6350-S |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Type | Center |
| Built in Switch | No |
| Detent | No |
| Encoder Type | Incremental |
| Mounting Type | Chassis Mount, Motors |
| Orientation | Vertical |
| Output Type | Quadrature with Index (Incremental) |
| Pulses per Revolution | 2048 |
| Termination Style | Terminal Pins |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 3.6 V |
