201UR104B
ObsoleteCTS Electrocomponents

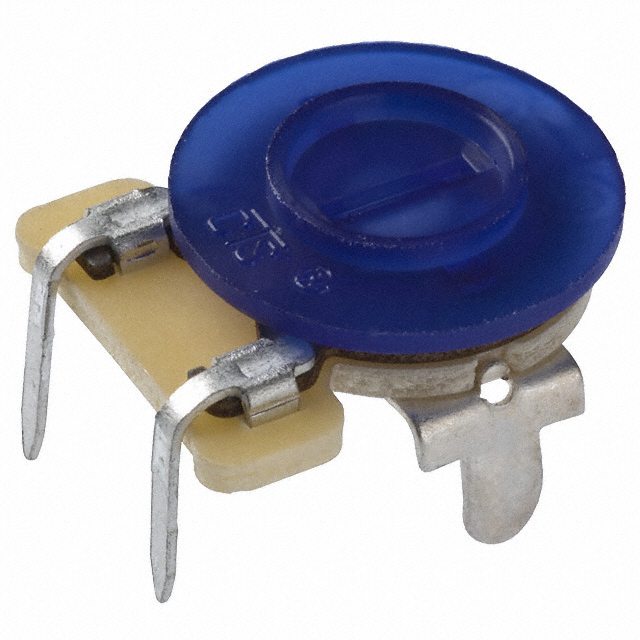

TRIMMER 100K OHM 0.2W PC PIN TOP
201UR104B
ObsoleteCTS Electrocomponents
TRIMMER 100K OHM 0.2W PC PIN TOP
Description
General part information
201UR104B
100 kOhms 0.2W, 1/5W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | 201UR104B |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 turns |
| Power (Watts) | 0.2 W |
| Power (Watts) Options | 1/5W |
| Resistance | 100 kOhm |
| Resistive Material | Carbon |
| Size / Dimension Length | 0.734 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.594 in |
| Termination Style | PC Pins |
| Tolerance | 20 % |
