LCCA30537-FT4
ActivePasternack
SMA F TO BNC FBH USING LC085TB,
LCCA30537-FT4
ActivePasternack
SMA F TO BNC FBH USING LC085TB,
Description
General part information
LCCA30537-FT4

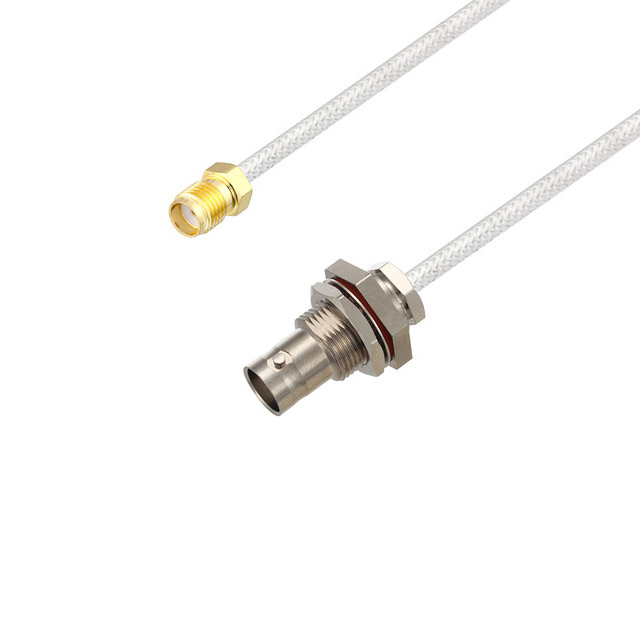

Cable Assembly Coaxial BNC to SMA LC085TB 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30537-FT4 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 1 GHz |
| Length | 48 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
