FLCO6L0206K4C
ActiveKYOCERA AVX
NEW
FLCO6L0206K4C
ActiveKYOCERA AVX
NEW
Description
General part information
FLCO6L0206K4C

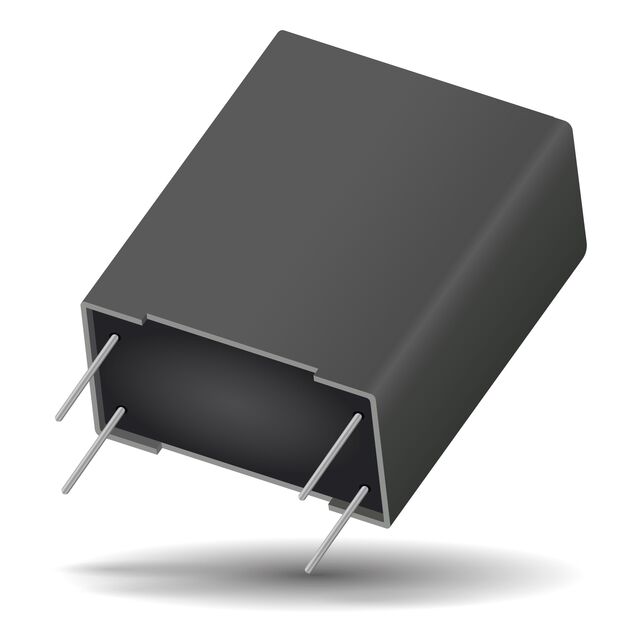

20 µF Film Capacitor 400V Polypropylene (PP), Metallized Radial - 4 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | FLCO6L0206K4C |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 20 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 1.988 in |
| Lead Spacing | 2.067 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial |
| Size / Dimension Length | 2.264 in |
| Size / Dimension Width | 1.378 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 400 Vpk |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
