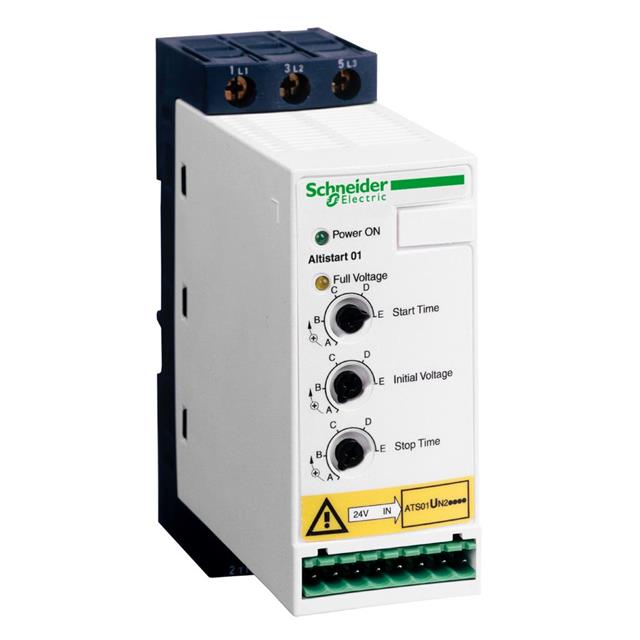

ATS01N212QN
ActiveSCHNEIDER ELECTRIC
MOTOR STARTER, SOFT, 12 A, 380 VAC TO 415 VAC, 3 PHASE, 5.5 KW, ALTISTART 01 SERIES
ATS01N212QN
ActiveSCHNEIDER ELECTRIC
MOTOR STARTER, SOFT, 12 A, 380 VAC TO 415 VAC, 3 PHASE, 5.5 KW, ALTISTART 01 SERIES
Description
General part information
ATS01N212QN
Motor Starter 456VAC Supply 12A 380 ~ 415V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS01N212QN |
|---|---|
| Control / Drive Type | Motor Starter |
| Current - Output | 12 A |
| Motor Type | AC Motor |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Type | Module |
| Voltage - Load (Max) | 415 V |
| Voltage - Load (Min) | 380 V |
| Voltage - Supply | 456 VAC |
| Wattage - Load | 5.5 kW |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
