1618818
ActivePhoenix Contact
CONN RCP HSG MAL 9P INLIN PNL MT
1618818
ActivePhoenix Contact
CONN RCP HSG MAL 9P INLIN PNL MT
Description
General part information
1618818

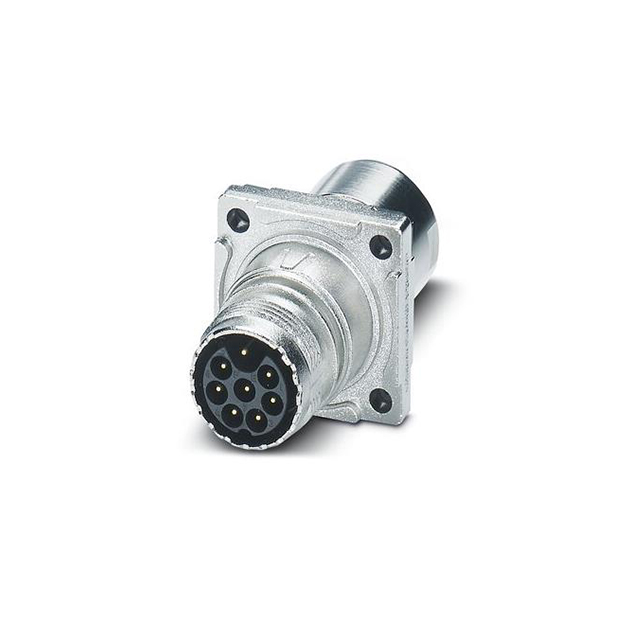

9 (5 + 3 Power + PE) Position Circular Connector Receptacle Housing Free Hanging (In-Line); Panel Mount Backshell
Technical Specifications
Parameters and characteristics for this part
| Specification | 1618818 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 0.6 mm |
| Contact Size (Power) | 1 mm |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Features | Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Feature | Flange |
| Mounting Type | Free Hanging (In-Line), Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Position Types | PE, Power |
| Shell Material | Metal |
| Shell Size - Insert | M17-9 |
| Shielding | Shielded |
| Type | For Male Pins |
