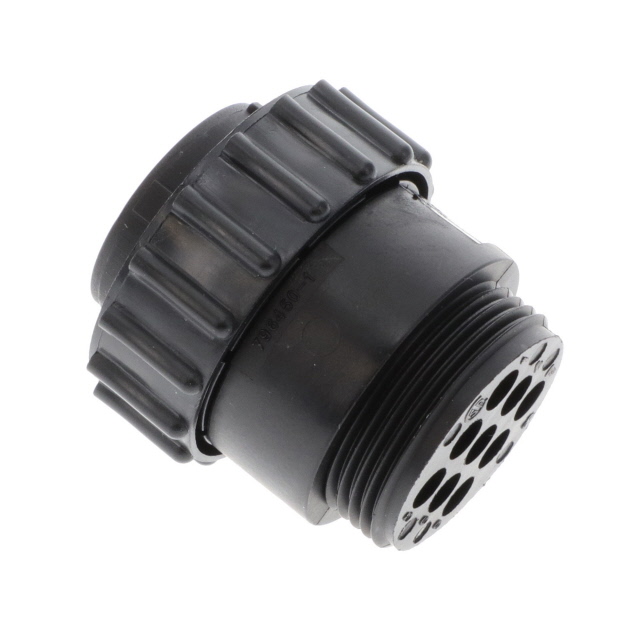

796450-1

Active

TE Connectivity AMP Connectors

CONN PLUG HSNG MALE 9POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSNG MALE 9POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	796450-1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Black
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	B
Shell Size - Insert	17-9
Shielding	Unshielded
Type	For Male Pins

CONN PLUG HSNG MALE 9POS INLINE

Part	Contact Shape	Number of Positions	Orientation	Contact Size	Housing Color	Features	Mounting Type	Contact Type	Note	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Shell Size - Insert	Insert Material	Type	Shielding	Connector Type
TE Connectivity AMP Connectors 796450-1	Circular	9	B	16	Black	Coupling Nut	Free Hanging (In-Line)	Crimp	Contacts Not Included	105 ░C	-55 °C	UL94 V-0	17-9	Thermoplastic	For Male Pins	Unshielded	Plug Housing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
