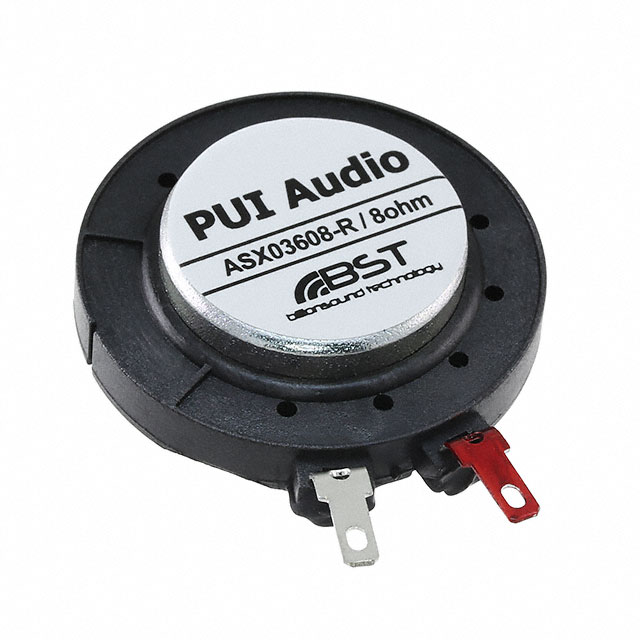

ASX03608-R
ActivePUI AUDIO
SPEAKERS & TRANSDUCERS EXCITER 36MM 8 OHM 3W 85DB 400 HZ
Deep-Dive with AI
Search across all available documentation for this part.
ASX03608-R
ActivePUI AUDIO
SPEAKERS & TRANSDUCERS EXCITER 36MM 8 OHM 3W 85DB 400 HZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ASX03608-R | ASX Series |
|---|---|---|
| - | - | |
| Efficiency - dBA | 85 dBA | 85 dBA |
| Efficiency - Testing | 1W/100mm | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 400 Hz | 400 Hz |
| Frequency Range [Max] | 10.5 kHz | 10.5 kHz |
| Frequency Range [Min] | 400 Hz | 400 Hz |
| Height - Seated (Max) [Max] | 0.492 in | 0.492 in |
| Height - Seated (Max) [Max] | 12.5 mm | 12.5 mm |
| Impedance | 8 Ohms | 8 Ohms |
| Material - Magnet | Nd-Fe-B | Nd-Fe-B |
| Port Location | Top | Top |
| Power - Max [Max] | 5 W | 5 W |
| Power - Rated | 3 W | 3 W |
| Shape | Round | Round |
| Size / Dimension [diameter] | 36.7 mm | 36.7 mm |
| Size / Dimension [diameter] | 1.445 in | 1.445 in |
| Technology | Magnetic | Magnetic |
| Termination | Quick Connect | Quick Connect |
| Type | Exciter | Exciter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
ASX Series
Speakers & Transducers EXCITER 36MM 8 OHM 3W 85DB 400 HZ
| Part | Frequency - Self Resonant | Efficiency - Type | Power - Max [Max] | Technology | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Efficiency - dBA | Efficiency - Testing | Material - Magnet | Termination | Port Location | Frequency Range [Max] | Frequency Range [Min] | Size / Dimension [diameter] | Size / Dimension [diameter] | Shape | Impedance | Type | Power - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PUI AUDIO ASX03608-R | 400 Hz | Sound Pressure Level (SPL) | 5 W | Magnetic | 0.492 in | 12.5 mm | 85 dBA | 1W/100mm | Nd-Fe-B | Quick Connect | Top | 10.5 kHz | 400 Hz | 36.7 mm | 1.445 in | Round | 8 Ohms | Exciter | 3 W |
PUI AUDIO ASX03608-R |
Description
General part information
ASX Series
Speakers & Transducers EXCITER 36MM 8 OHM 3W 85DB 400 HZ
