25092 BK005

Active

ALPHA WIRE

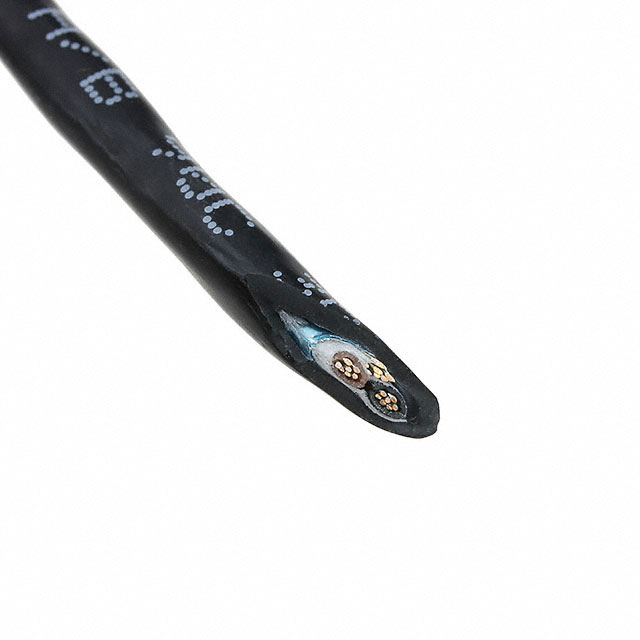

CABLE 2COND 24AWG BLK SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 24AWG BLK SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	25092 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.06 mm
Jacket (Insulation) Diameter [diameter]	0.16 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	24 AWG

CABLE 2COND 24AWG BLK SHLD 100'

Part	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Shield Coverage	Conductor Material	Voltage	Features	Shield Type	Jacket (Insulation) Material	Wire Gauge	Number of Conductors	Jacket Color	Shield Material
ALPHA WIRE 25092 BK005	30.5 m	100 ft	32 AWG	7	ISO 10993, UL Style 20668	Poly-Vinyl Chloride (PVC)	4.06 mm	0.16 in	-30 ░C	90 °C	Multi-Conductor	100 %	Copper, Tinned	300 V	Biological Compatibility, Drain Wire, Rip Cord	Foil	Polyurethane (PU)	24 AWG	2	Black	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Black 24 AWG Foil 100.0' (30.5m)
