Description

General part information

34824

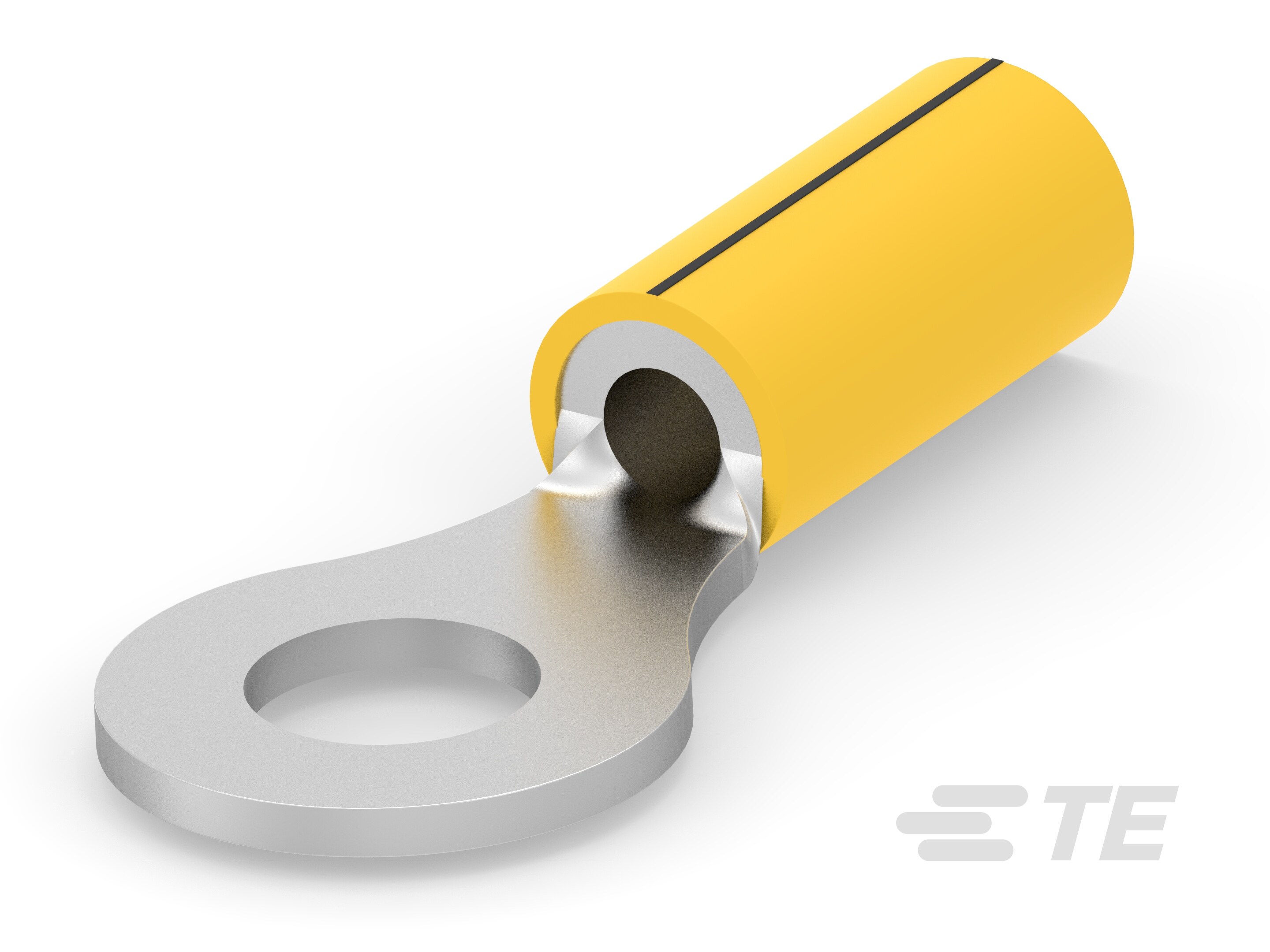

Closed Ring Tongue Terminal, 16 – 14 AWG, 1/4 / M6 Stud, 6.73 mm [.265 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP

Technical Specifications

Parameters and characteristics for this part

Specification34824
ColorBlack Stripe, Yellow
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination, Heavy Duty
InsulationInsulated
Length - Overall1.296 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size0.25 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.048 in
Width - Outer Edges0.531 in
Wire Gauge (AWG) (Max)16 AWG
Wire Gauge (AWG) (Min)14 AWG
