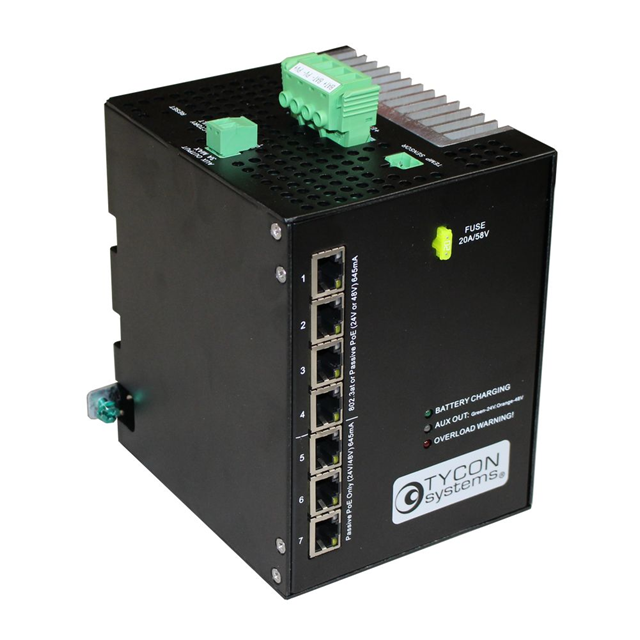

TPDIN-SC48-20

Active

Tycon Systems Inc.

BATT CHARGER SOLAR 48V 20A

Search across all available documentation for this part.

Active

Tycon Systems Inc.

BATT CHARGER SOLAR 48V 20A

Technical Specifications

Parameters and characteristics commom to parts in this series

BATT CHARGER SOLAR 48V 20A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Charge Current - Max [Max]	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Battery Cell Size	Mounting Type	Voltage - Nominal	Approval Agency	Battery Chemistry	Power - Max [Max]	Number of Cells [custom]	Type	Voltage - Input [Max]	Voltage - Input [Min]
Tycon Systems Inc. TPDIN-SC48-20	65 °C	-40 °C	20 A	Terminal Block	111.76 mm	149.86 mm	5.4 in	5.9 in	137.16 mm	4.4 "	48 V	DIN Rail	48 V	CE, FCC, UL	Lead Acid, Lithium-Ion	200 W	7	Solar Charger	100 V	56 V
Tycon Systems Inc. TPDIN-MONITOR-WEB2																		Controller

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solar Charger Battery Charger 48V 20A 48V
