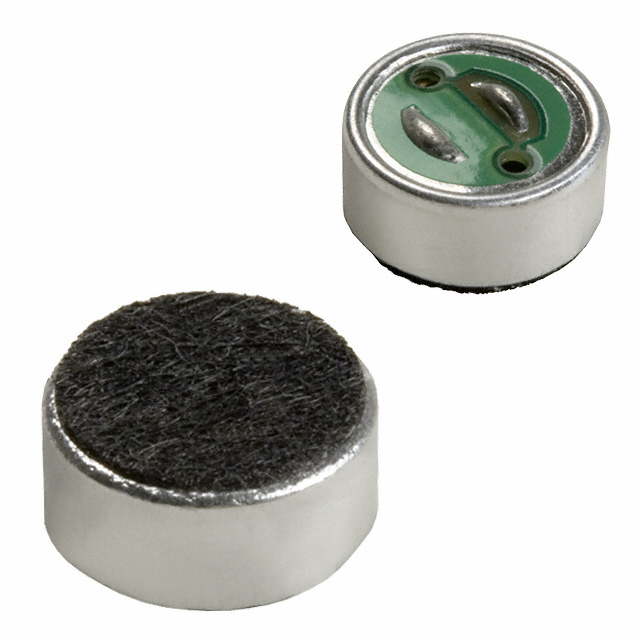

MD6030NSZ-0
ObsoleteKnowles Syfer
MIC COND ANLG NC -39DB 0.236"DIA
MD6030NSZ-0
ObsoleteKnowles Syfer
MIC COND ANLG NC -39DB 0.236"DIA
Description
General part information
MD6030NSZ-0
300 Hz ~ 6 kHz Analog Microphone Electret Condenser 3 V ~ 10 V Noise Cancelling (-39dB ±4dB @ 94dB SPL) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | MD6030NSZ-0 |
|---|---|
| Current - Supply | 500 µA |
| Direction | Noise Cancelling |
| Frequency Range (Max) | 6 kHz |
| Frequency Range (Min) | 300 Hz |
| Height (Max) | 0.106 in |
| Impedance | 2.2 kOhms |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 55 dB |
| Sensitivity (Nominal) | -39 dB |
| Sensitivity Tolerance | 4 dB |
| Shape | Circular |
| Size / Dimension Diameter | 0.236 in |
| Termination | Solder Pads |
| Type | Electret Condenser |
| Voltage - Rated | 3 VDC |
| Voltage Range (Max) | 10 V |
| Voltage Range (Min) | 3 V |
