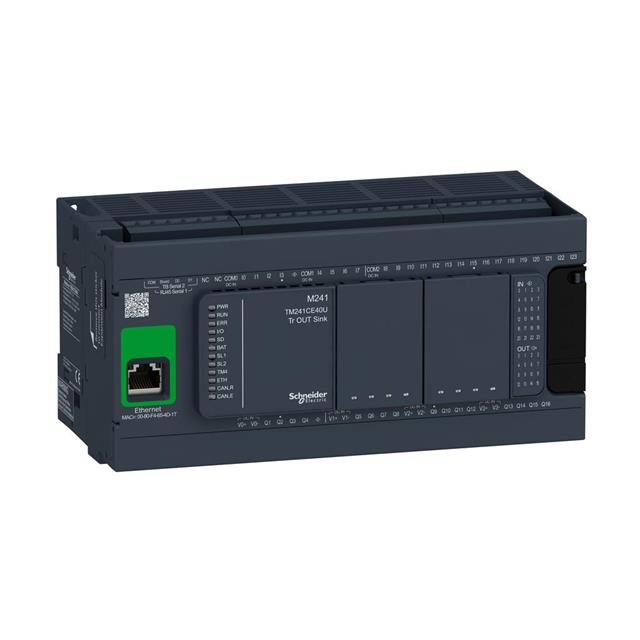

TM241CE40U
ActiveSCHNEIDER ELECTRIC
PLC, MODICON™ M241 SERIES, 24 SINK / SOURCE INPUTS, 16 SINK TRANSISTOR OUTPUTS, 24 VDC, ETHERNET
TM241CE40U
ActiveSCHNEIDER ELECTRIC
PLC, MODICON™ M241 SERIES, 24 SINK / SOURCE INPUTS, 16 SINK TRANSISTOR OUTPUTS, 24 VDC, ETHERNET
Description
General part information
TM241CE40U
Programmable Logic Controller (PLC) DIN Rail 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | TM241CE40U |
|---|---|
| Approval Agency | CSA, UL, cULus |
| Communications | RS-485, RJ45, RS-232, USB |
| Display Type | No Display |
| Ingress Protection | IP20 |
| Input Types | Digital |
| Maximum Expandable Modules | 21 Modules |
| Mounting Type | DIN Rail |
| Number of Inputs | 24 |
| Number of Outputs | 16 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Type | Solid State |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
