432200-02-0
ActiveCurtis Industries

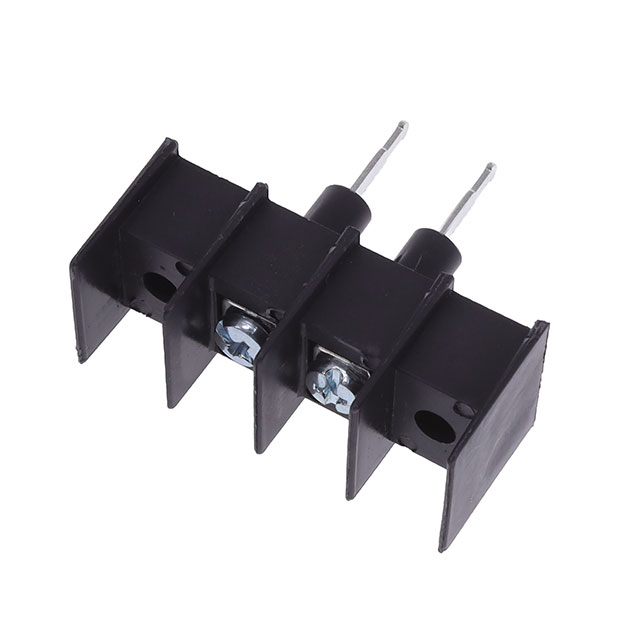

CONN BARRIER STRIP 2CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
432200-02-0
ActiveCurtis Industries
CONN BARRIER STRIP 2CIRC 0.438"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 432200-02-0 | 432200 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Solder Turret, Insulated | Solder Turret, Insulated |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 2 | 2 - 21 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 2 | 2 - 21 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Zinc | Zinc |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Voltage Rating | 600 V | 600 V |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
432200 Series
CONN BARRIER STRIP 2CIRC 0.438"
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Number of Wire Entries | Pitch [x] | Pitch [x] | Mounting Type | Number of Rows | Barrier Type | Voltage Rating | Terminal Screw Material | Features | Number of Circuits | Terminal Block Type | Terminal Screw Finish | Material - Insulation | Operating Temperature | Bottom Termination | Current Rating (Amps) | Top Termination | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 432200-02-0 | 12 AWG | 22 AWG | 2 | 11.12 mm | 0.438 in | Chassis, Panel | 1 | 2 Wall (Dual) | 600 V | Steel | Flange | 2 | Barrier Block | Zinc | Polypropylene (PP) | 105 C | Solder Turret, Insulated | 20 A | Screws | UL94 V-0 |
Curtis Industries 432200-19-0 | 12 AWG | 22 AWG | 19 | 11.12 mm | 0.438 in | Chassis, Panel | 1 | 2 Wall (Dual) | 600 V | Steel | Flange | 19 | Barrier Block | Zinc | Polypropylene (PP) | 105 C | Solder Turret, Insulated | 20 A | Screws | UL94 V-0 |
Curtis Industries 432200-06-0 | 12 AWG | 22 AWG | 6 | 11.12 mm | 0.438 in | Chassis, Panel | 1 | 2 Wall (Dual) | 600 V | Steel | Flange | 6 | Barrier Block | Zinc | Polypropylene (PP) | 105 C | Solder Turret, Insulated | 20 A | Screws | UL94 V-0 |
Curtis Industries 432200-21-0 | 12 AWG | 22 AWG | 21 | 11.12 mm | 0.438 in | Chassis, Panel | 1 | 2 Wall (Dual) | 600 V | Steel | Flange | 21 | Barrier Block | Zinc | Polypropylene (PP) | 105 C | Solder Turret, Insulated | 20 A | Screws | UL94 V-0 |
Curtis Industries 432200-09-0 | 12 AWG | 22 AWG | 9 | 11.12 mm | 0.438 in | Chassis, Panel | 1 | 2 Wall (Dual) | 600 V | Steel | Flange | Barrier Block | Zinc | Polypropylene (PP) | 105 C | Solder Turret, Insulated | 20 A | Screws | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.41 | |
| 10 | $ 1.84 | |||
| 25 | $ 1.72 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.50 | |||
| 250 | $ 1.46 | |||
Description
General part information
432200 Series
2 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
