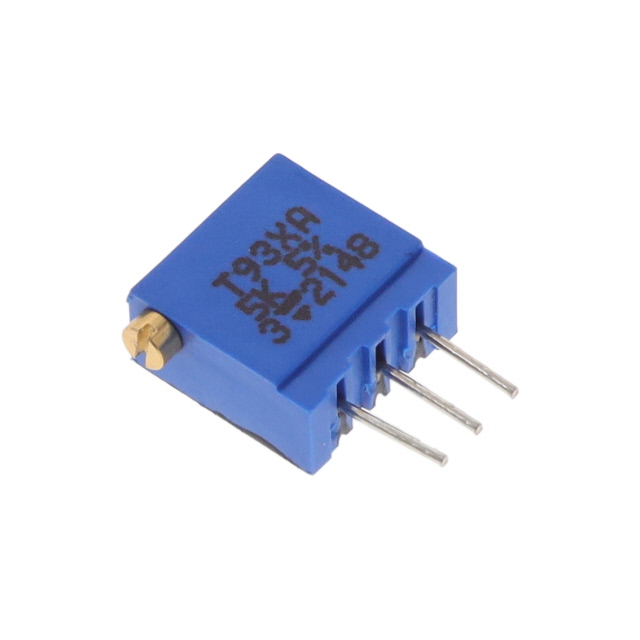

T93XA502JT20
ActiveVishay Dale
TRIMMER 5K OHM 0.5W PC PIN SIDE
T93XA502JT20
ActiveVishay Dale
TRIMMER 5K OHM 0.5W PC PIN SIDE
Description
General part information
T93XA502JT20
5 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 23.0 Turn Side Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | T93XA502JT20 |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 23 turns |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 5 kOhm |
| Resistive Material | Cermet |
| Size / Dimension Length | 0.382 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.197 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 5 % |
