FXP890.07.0100C
ActiveTaoglas Limited

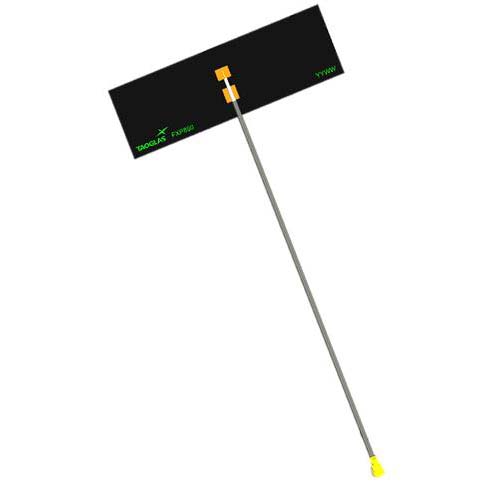

RF ANTENNA, 902 TO 928MHZ, LORA / ISM, -0.06DBI, 50 OHM, LINEAR
FXP890.07.0100C
ActiveTaoglas Limited
RF ANTENNA, 902 TO 928MHZ, LORA / ISM, -0.06DBI, 50 OHM, LINEAR
Description
General part information
FXP890.07.0100C
RF ANTENNA ISM, LoRa PCB Trace I-PEX MHF1 (U.FL) Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FXP890.07.0100C |
|---|---|
| Antenna Type | PCB Trace |
| Applications | LoRa, ISM |
| Features | Cable, 100mm |
| Frequency (Band) | 915 MHz |
| Frequency (Center) | 866.5 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Band 1) Maximum | 870 MHz |
| Frequency Range (Band 1) Minimum | 863 MHz |
| Frequency Range (Band 2) Maximum | 928 MHz |
| Frequency Range (Band 2) Minimum | 902 MHz |
| Gain | -0.9 dBi, -0.06 dBi |
| Height (Max) | 0.063 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Power - Max | 10 VA |
| RF Family/Standard | General ISM |
| Termination | I-PEX MHF1 (U.FL) |
