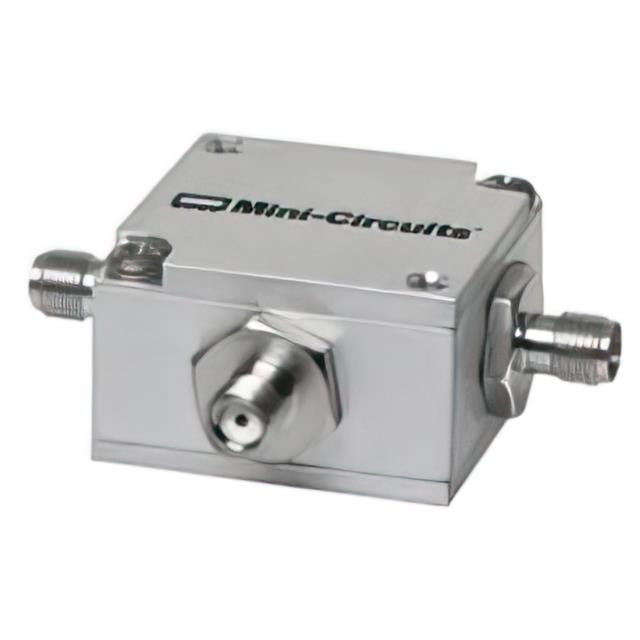

ZFDC-20-3-S+
ActiveMini-Circuits
19.5 DB DIR COUP, 0.2-250 MHZ
ZFDC-20-3-S+
ActiveMini-Circuits
19.5 DB DIR COUP, 0.2-250 MHZ
Description
General part information
ZFDC-20-3-S+
RF Directional Coupler General Purpose 200kHz ~ 250MHz 19.5 ± 0.5dB 4W Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | ZFDC-20-3-S+ |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 19.5 dB |
| Coupling Factor Tolerance | 0.5 dB |
| Frequency (Max) | 250 MHz |
| Frequency (Min) | 200 kHz |
| Frequency Range 1 (Max) | 250 MHz |
| Frequency Range 1 (Min) | 200 kHz |
| Package / Case | Module, SMA Connectors |
| Power - Max | 4 VA |
