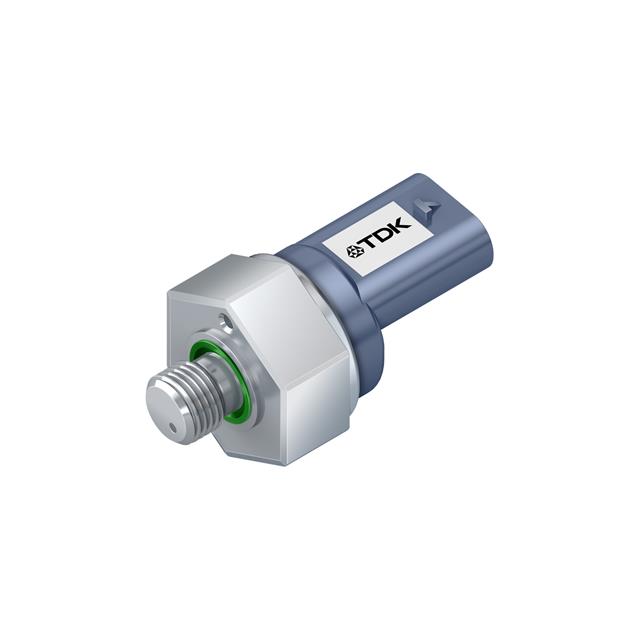

B58620F3800B768
ActiveEPCOS - TDK Electronics
ABSOLUTE PRESSURE TRANSMITTER WI
B58620F3800B768
ActiveEPCOS - TDK Electronics
ABSOLUTE PRESSURE TRANSMITTER WI
Description
General part information
B58620F3800B768
ABSOLUTE PRESSURE TRANSMITTER WI
Technical Specifications
Parameters and characteristics for this part
| Specification | B58620F3800B768 |
|---|---|
| Accuracy | 1.5 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure | 217.56 PSI |
| Operating Pressure (Max) | 159.5 PSI |
| Operating Pressure (Min) | 14.5 PSI |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Analog Voltage |
| Output Voltage (Max) | 4.5 V |
| Output Voltage (Min) | 0.5 V |
| Package / Case | Threaded, Cylinder |
| Port Code | M10 |
| Port Feature | 1, x |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Absolute |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
