52004
ActiveTE Connectivity AMP Connectors

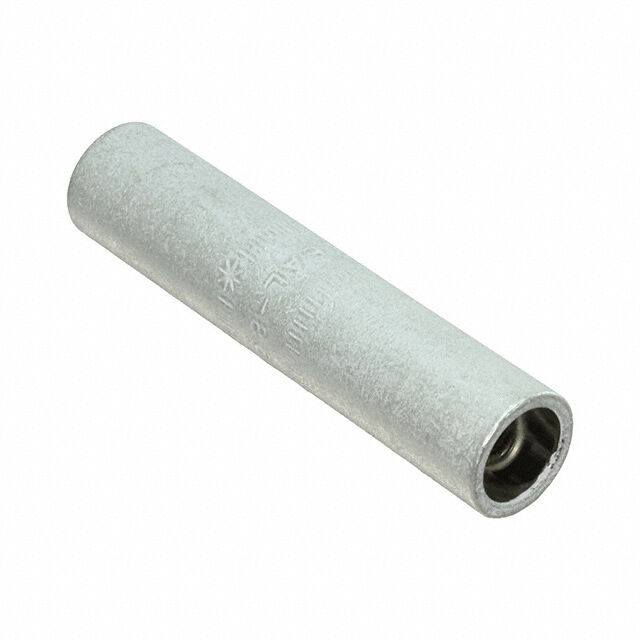

CONN SPLICE 10-12 AWG CRIMP
52004
ActiveTE Connectivity AMP Connectors
CONN SPLICE 10-12 AWG CRIMP
Description
General part information
52004
Butt Splice, 14 – 12 AWG, 3 mm² Wire, 3260 – 8230 CMA, Copper, .799 in Length, Box, Open Barrel, Solid / Stranded Wire, Aluminum / Copper Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 52004 |
|---|---|
| Insulation | Non-Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Individual Openings, Butt Splice |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
52004 | Datasheet
Copalum Terminals & Splices f/Solid & Stranded Wire
ENG_CD_52004_E.pdf
Datasheet
COPALUM Lite Sealed Terminals and Splices
COPALUM WIRE CONNECTORS
WIRE CONN, TERMINALS, BUTT AND PARALLEL CONNECTORS-PLASTI-GRIP, SOLISTRAND, STD B, DIAMOND GRIP, PIDG AND AMPOWER REPORT
Terminal and Splice, COPALUM, Stranded/Solid
COPALUM Terminals And Splices For Solid And Stranded Wire
