BAC554
ActivePasternack
TNC FEMALE BHD RG142/223/400
BAC554
ActivePasternack
TNC FEMALE BHD RG142/223/400
Description
General part information
BAC554

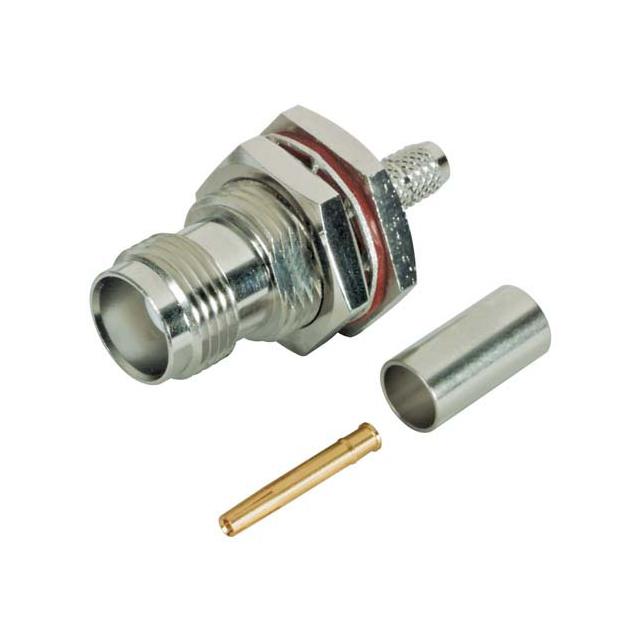

TNC Connector Receptacle, Female Socket 50 Ohms Panel Mount Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | BAC554 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-223 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
